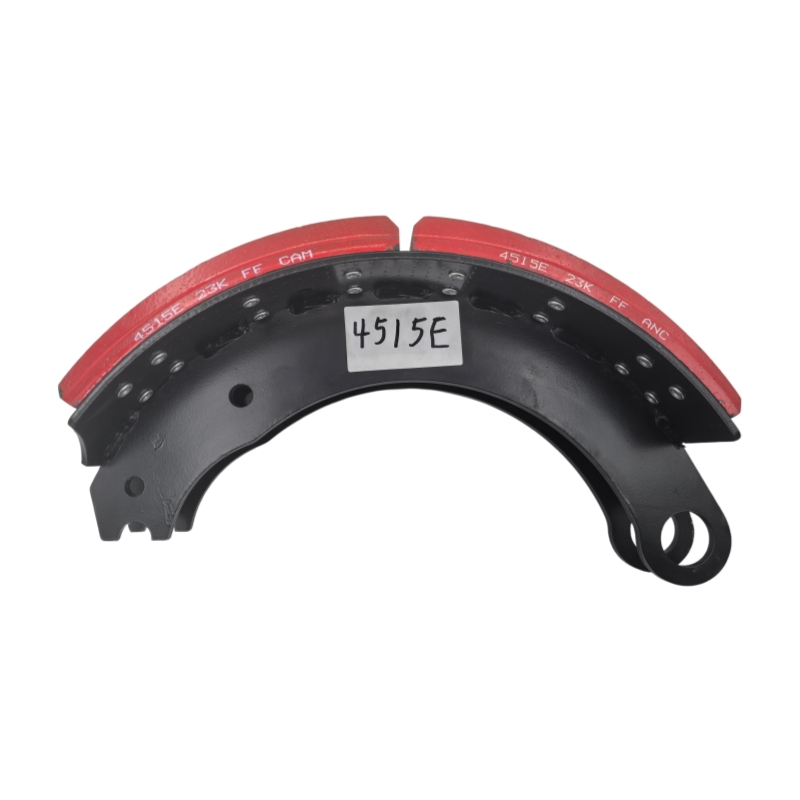

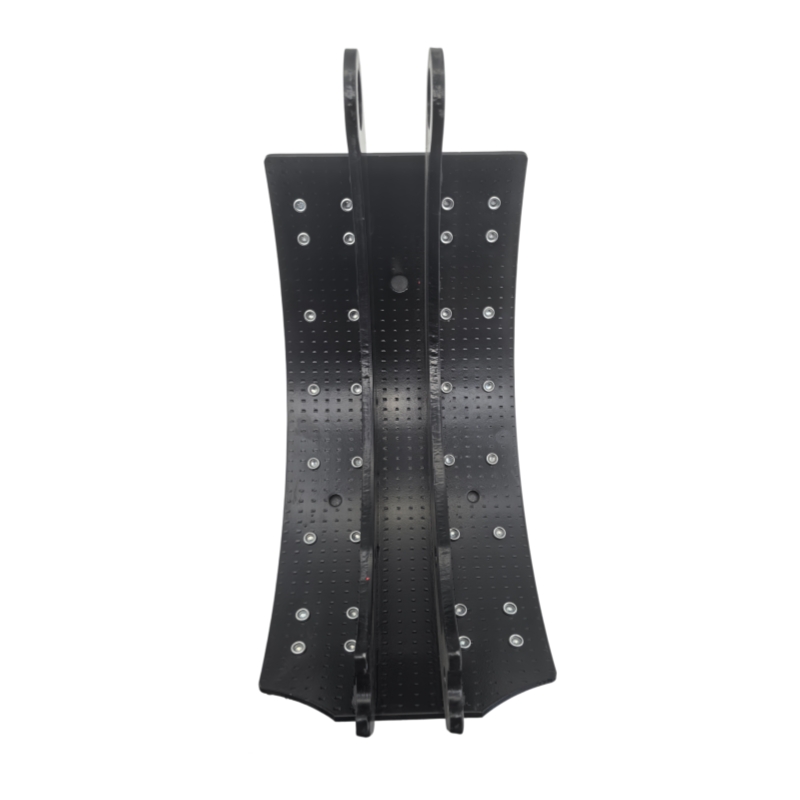

Engineered for Class 7–8 commercial highway tractors, dry vans, intermodal container chassis, and vocational trailers across North America, this 4515E Brake Shoe Kit provides a comprehensive single-wheel replacement solution for classic Eaton 16.5" x 7" foundation drum assemblies. Each master kit packages two heavy-duty projection-welded steel brake shoes pre-riveted with high-density non-asbestos friction blocks, alongside fatigue-resistant Eaton-configuration extension return springs, single-anchor retention clips, and induction-hardened rollers. Installing this matched overhaul assembly eliminates shoe dragging, balances mechanical retraction force, and optimizes shop maintenance bay turnaround.
Maintaining balanced stopping torque, smooth air-brake modulation, and strict FMVSS-121 compliance under heavy gross vehicle weight ratings demands foundation brake components that withstand severe thermal shock. Extended line-haul runs and constant urban delivery cycles subject wheel-ends to intense heat, where aged springs and grooved rollers cause sluggish shoe return, dragging linings, and accelerated drum heat checking.Our 4515E Brake Shoe Kit delivers OEM-standard dimensional precision and severe-duty durability designed specifically for North American fleet operations.
Structural Steel Fabrication & Precision Coined Arc Geometry
The core skeletons are manufactured from heavy-gauge structural steel plate. The web and table rim are bonded via high-frequency automated projection welding and calibrated through precision coining dies. This process guarantees a true 16.5-inch arc curvature that eliminates localized edge loading, initial chatter, and drum pinching. The bare steel skeleton is fully protected with an electrostatic powder coating to shield against road brine, winter calcium chloride, and chemical de-icers.
23K GAWR Friction Matrix & Turn-Key Eaton Hardware
Outfitted with commercial-grade non-asbestos friction blocks rated for 20,000 to 23,000 lbs GAWR duty cycles, the friction formulation maintains a stable friction coefficient across continuous operating temperatures up to 750°F (400°C). Each master box integrates matched oil-tempered return springs, single-pin anchor hardware, and case-hardened cam rollers, allowing fleet mechanics to complete complete axle rebuilds in a single step without reusing fatigued hardware.
Key Features & Specifications
Target Eaton Profile Fitment: Purpose-built for North American standard 16.5" x 7" (4515E standard) single-anchor pin commercial drum brake configurations across drive, steer, and trailer axles.
FMVSS-121 Certified Friction Blocks: High-density non-asbestos semi-metallic compound delivers dependable stopping distances, high fade resistance, and minimal drum scoring under full payload.
Precision-Coining Skeleton Calibration: Hydraulic die-calibrated steel frames ensure 100% full-surface lining-to-drum contact immediately upon installation.
Severe-Duty Anti-Corrosion Barrier: Industrial electrostatic powder finish shields the structural steel from highway salt spray, moisture, and chemical oxidants.

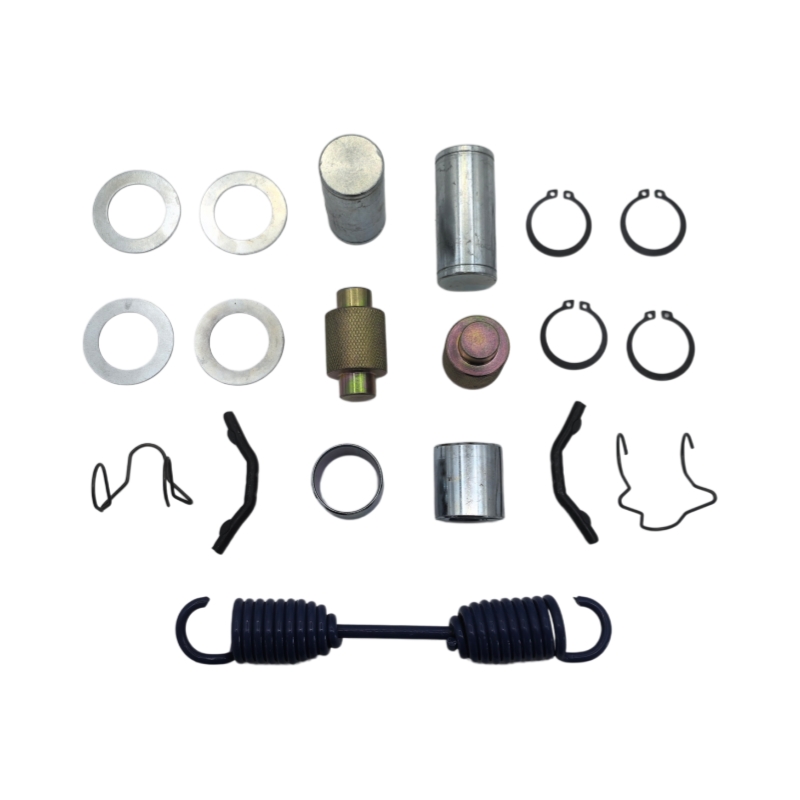

Consolidated Overhaul Master Set: Bundles 2 pre-riveted lined brake shoes paired with fatigue-tested Eaton-style return springs, retaining clips, and hardened rollers for immediate wheel-end servicing.
Frequently Asked Questions (FAQ)
Q1: Which vehicle applications and axle systems are compatible with this 4515E Brake Shoe Kit?
A: This kit is engineered for North American Class 7 and Class 8 commercial vehicles, including heavy tractors, flatbeds, dry freight vans, refrigerated trailers, and vocational chassis equipped with 16.5" x 7" Eaton single-anchor foundation drum brakes.
Q2: What is the main structural difference between a 4515E Brake Shoe Kit and a 4515Q kit?
A: The difference is in the anchor end and hardware layout: 4515E is designed for Eaton single-anchor pin setups featuring open anchor slots and single-pin retention springs, whereas 4515Q is configured for Meritor/Q-Plus dual-anchor pin systems.
Q3: Are the friction linings pre-attached to the steel brake shoe skeletons?
A: Yes. Every brake shoe arrives pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting presses, ready for immediate installation.
Q4: Why should hardware springs and rollers be replaced during every brake shoe replacement?
A: High operating temperatures degrade spring tension and create flat spots on rollers. Reusing worn hardware leads to incomplete shoe retraction, continuous brake drag, drum glazing, and uneven lining taper. Installing new hardware restores balanced mechanical retraction action.
Q5: Do you support custom private labeling, laser web marking, and palletized bulk shipping?
A: Yes. As a direct manufacturer, we support custom laser etching on shoe webs, private-brand master cartons, and export-grade pallet packaging tailored for North American parts distributors and fleet suppliers.
Designed for heavy-duty commercial fleets operating European-spec chassis across North American corridors , this NEW BPW 180/200 Brake Shoe Kit provides a turn-key wheel-end replacement for SN4218 (420×180mm) and SN4220 (420×200mm) drum brake assemblies. Every kit pairs fully riveted, certified non-asbestos friction blocks on calibrated high-tensile steel shoes with high-strength extension return springs, hardened pivot rollers, and retaining hardware —delivering fade-resistant thermal performance, even brake torque, and minimized fleet maintenance downtime.
View More

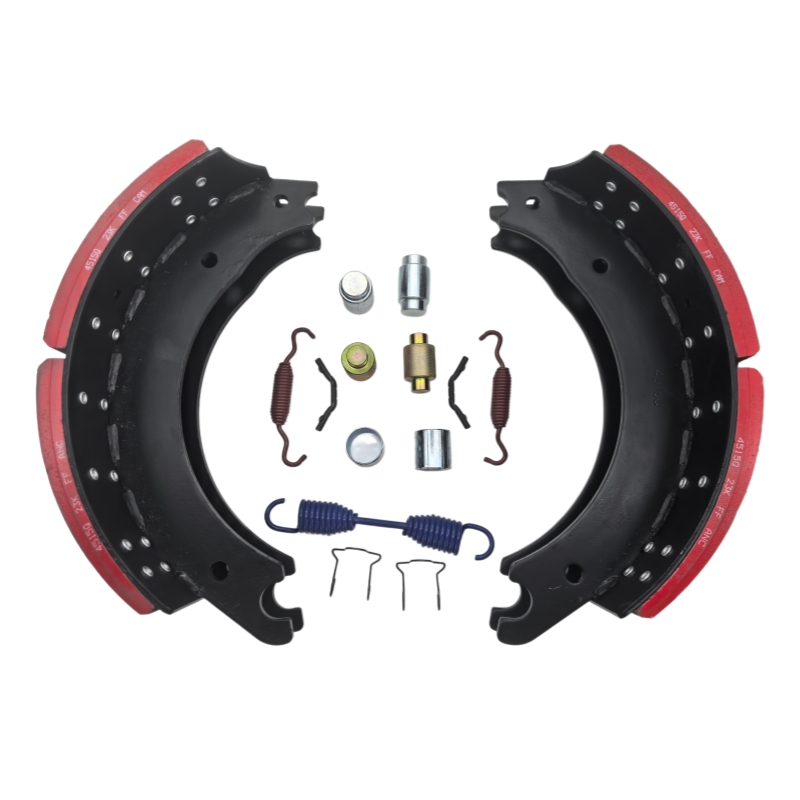

Engineered for Class 7–8 line-haul tractors, intermodal container chassis, refrigerated reefers, and severe-duty vocational trailers across North America, this 4515Q Brake Shoe Kit provides a comprehensive single-wheel overhaul package for standard 16.5" x 7" Q and Q-Plus foundation drum brakes. Each master kit bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks alongside fatigue-tested dual-spring return systems, case-hardened anchor pins, cam rollers, and retaining clips. Installing this turn-key assembly stops brake drag, restores balanced mechanical release tension, prevents uneven lining taper, and minimizes preventative maintenance bay turnaround time.
View More
Engineered for Class 7–8 commercial highway tractors, dry vans, intermodal container chassis, and vocational trailers across North America, this 4515E Brake Shoe Kit provides a comprehensive single-wheel replacement solution for classic Eaton 16.5" x 7" foundation drum assemblies. Each master kit packages two heavy-duty projection-welded steel brake shoes pre-riveted with high-density non-asbestos friction blocks, alongside fatigue-resistant Eaton-configuration extension return springs, single-anchor retention clips, and induction-hardened rollers. Installing this matched overhaul assembly eliminates shoe dragging, balances mechanical retraction force, and optimizes shop maintenance bay turnaround.
View More

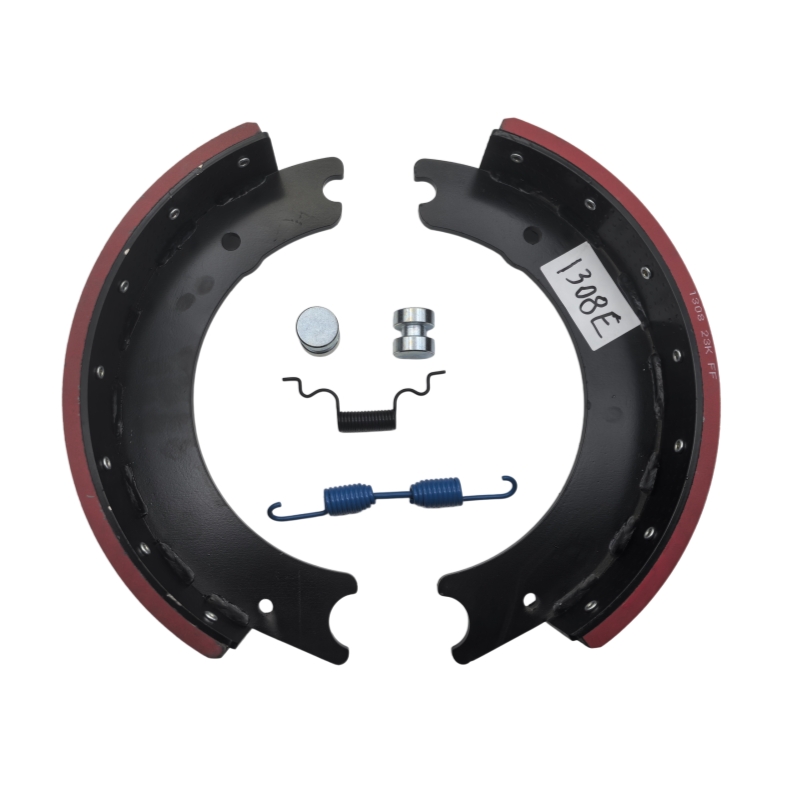

Designed for Class 7–8 line-haul tractors, intermodal container chassis, refrigerated reefers, and vocational trailers across North America, this 1308E Brake Shoe Kit provides a comprehensive single-wheel overhaul solution for 16.5" x 7" Eaton-style single-anchor foundation drum brakes. Each master package bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks, paired with fatigue-resistant single-anchor return springs, retention clips, case-hardened rollers, and pivot pins. This all-in-one overhaul assembly eliminates shoe drag, restores proper mechanical return action, prevents uneven friction taper, and minimizes scheduled maintenance bay downtime.
View More

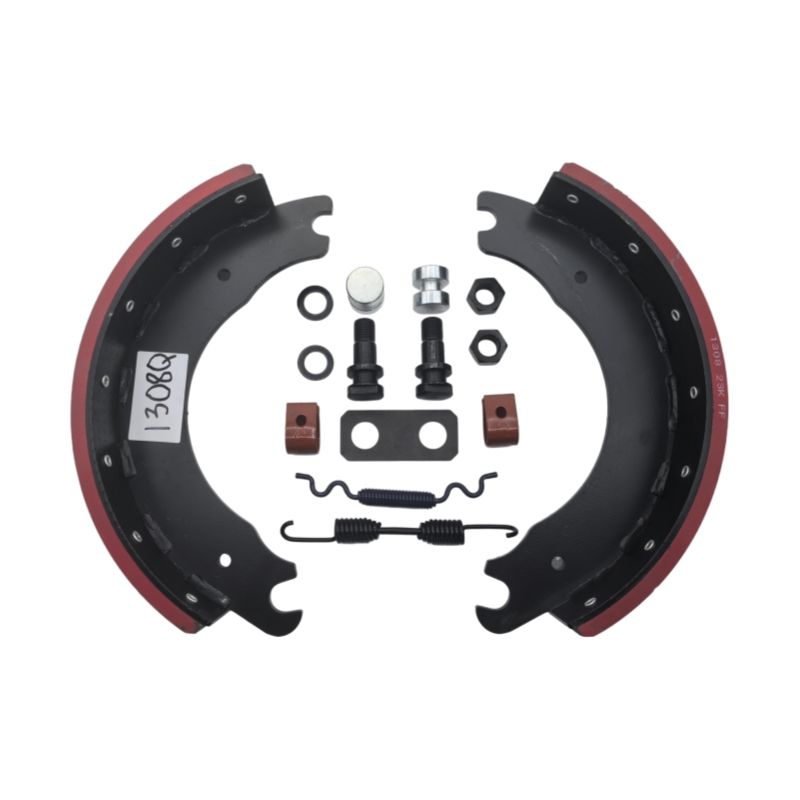

Designed for Class 7–8 line-haul tractors, intermodal container chassis, refrigerated reefers, and vocational trailers across North America, this 1308Q Brake Shoe Kit provides a comprehensive single-wheel overhaul solution for 16.5" x 7" Q-style foundation drum brakes. Each master package bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks, paired with fatigue-resistant dual-spring return systems, quick-change anchor pins, retention clips, case-hardened cam rollers, and anti-friction bushings. This turn-key overhaul package stops shoe drag, balances mechanical release tension, prevents uneven friction taper, and minimizes scheduled maintenance bay downtime.
View More

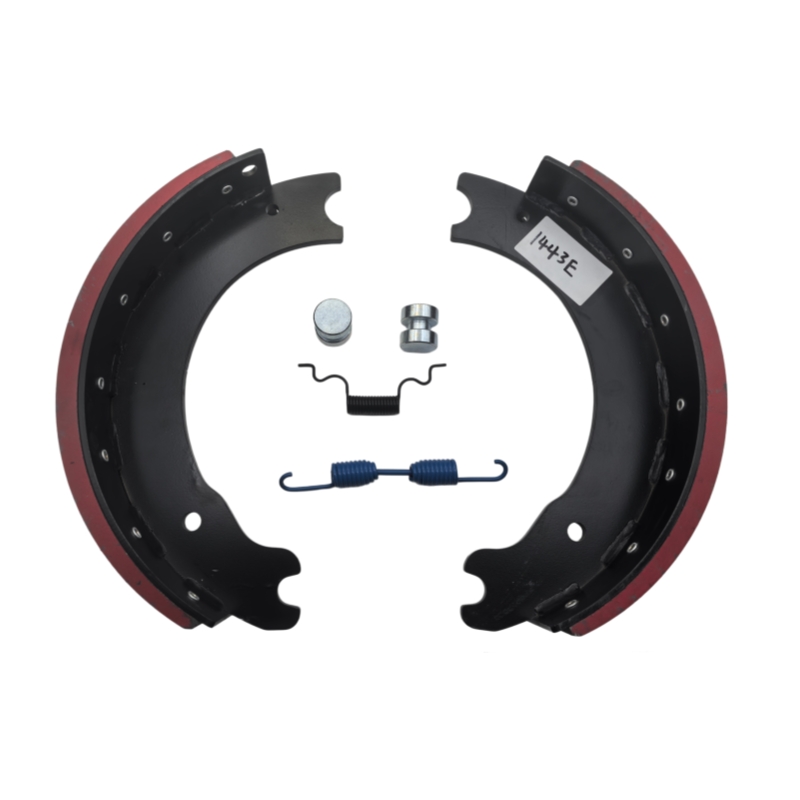

Designed for Class 7–8 long-haul freight tractors, refrigerated reefers, dry vans, and severe-duty vocational trailers across North America, this 1443E Brake Shoe Kit provides an integrated single-wheel overhaul solution for classic 16.5" x 7" Eaton-style foundation drum brakes. Each master package bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks, alongside fatigue-tested single-anchor return springs, anchor retention hardware, precision-ground cam rollers, and pivot pins. Installing this turn-key assembly eliminates shoe drag, restores balanced mechanical return force, prevents uneven lining taper wear, and minimizes scheduled shop downtime.
View More

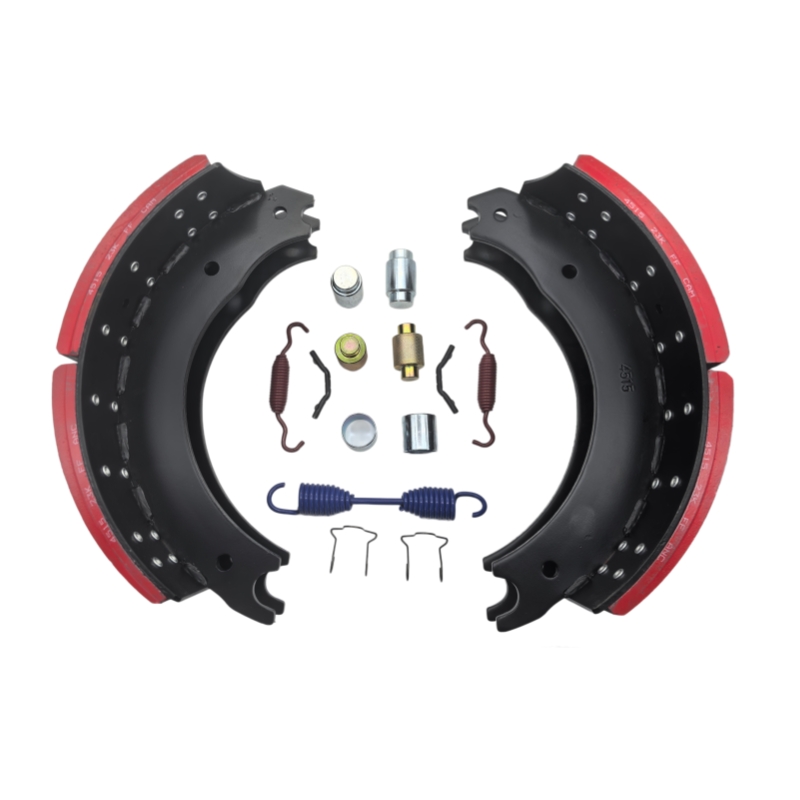

Engineered for Class 7–8 interstate freight tractors, bulk haulers, refrigerated vans, and heavy-duty vocational trailers across North America, this 4515 Brake Shoe Kit provides an all-inclusive single-axle overhaul assembly for standard 16.5" x 7" foundation drum brakes. Each master box integrates two heavy-gauge structural steel brake shoes mechanically fastened with premium non-asbestos friction blocks, alongside fatigue-resistant return springs, anchor pins, precision cam rollers, and retention hardware. Installing this unified overhaul package prevents shoe drag, balances mechanical release action, eliminates uneven lining taper wear, and streamlines preventative maintenance shop bay turnaround.
