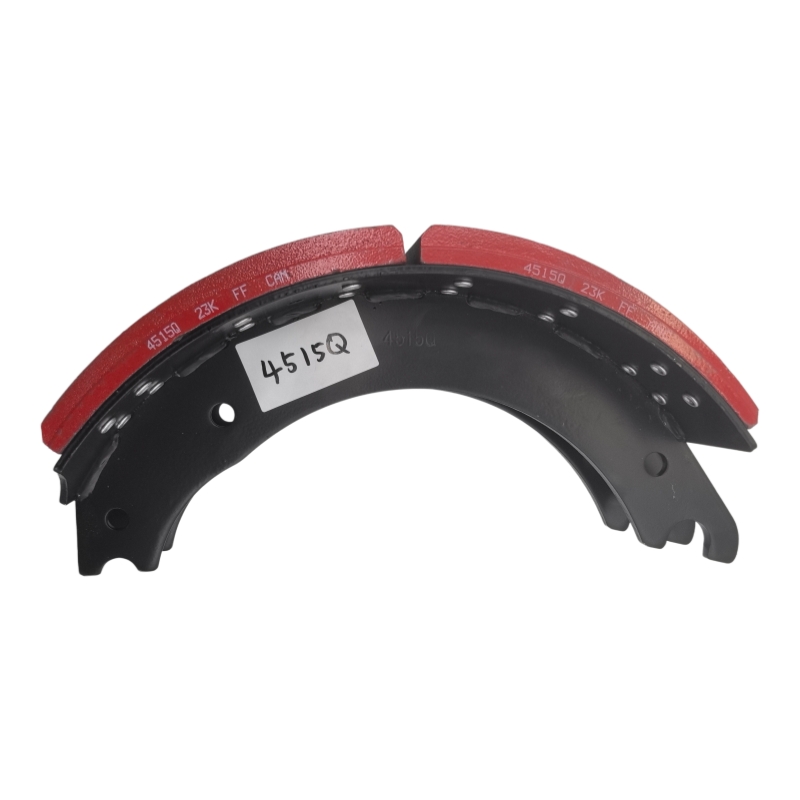

Engineered for Class 7–8 line-haul tractors, intermodal container chassis, refrigerated reefers, and severe-duty vocational trailers across North America, this 4515Q Brake Shoe Kit provides a comprehensive single-wheel overhaul package for standard 16.5" x 7" Q and Q-Plus foundation drum brakes. Each master kit bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks alongside fatigue-tested dual-spring return systems, case-hardened anchor pins, cam rollers, and retaining clips. Installing this turn-key assembly stops brake drag, restores balanced mechanical release tension, prevents uneven lining taper, and minimizes preventative maintenance bay turnaround time.
Maintaining consistent deceleration torque, smooth pedal modulation, and strict FMVSS-121 regulatory compliance under maximum gross combination weights requires foundation brake components that withstand severe thermal and mechanical fatigue. High-frequency stop-and-go delivery cycles and sustained downhill mountain descents create extreme wheel-end heat, where aged return springs and worn rollers lead to dragging linings, localized hot-spotting, and costly drum heat checking.Our 4515Q Brake Shoe Kit delivers OEM-standard dimensional precision and commercial-grade durability tailored for North American fleet operations.
High-Tensile Steel Fabrication & Precision Coining Calibration

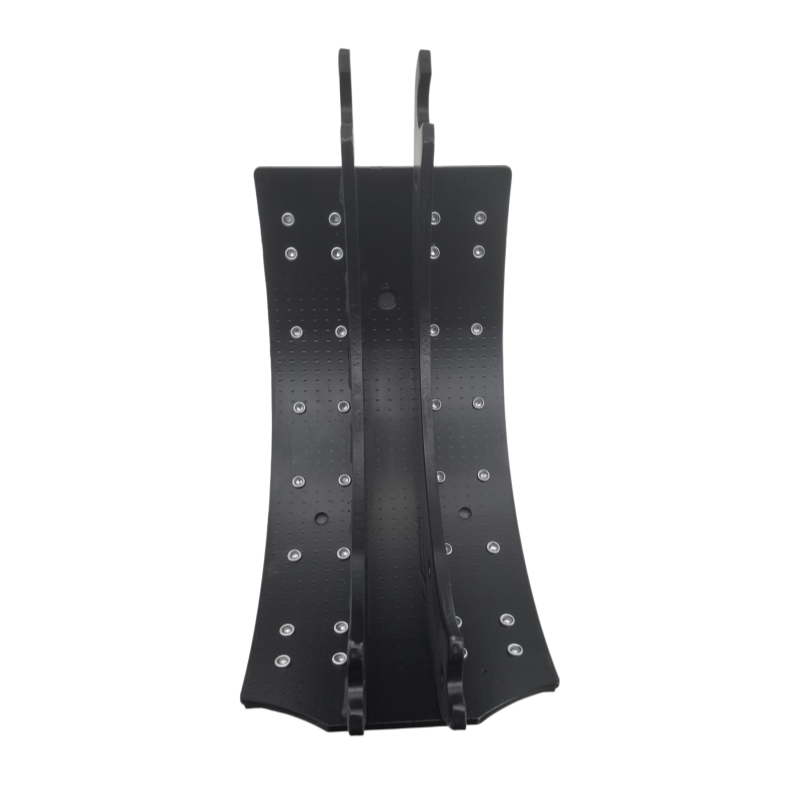

The foundation shoe cores are manufactured from high-yield structural steel plate. The web and rim structures are joined using high-frequency automated projection welding and calibrated under high-tonnage precision coining dies. This process ensures an exact 16.5-inch arc radius that eliminates localized edge loading, shoe chattering, and initial drum pinching. The structural skeleton is fully shielded with an electrostatic powder-coat finish, providing a robust barrier against road salt, moisture, calcium chloride, and magnesium chloride de-icing chemicals.
23K GAWR Friction Matrix & Turn-Key Overhaul Hardware

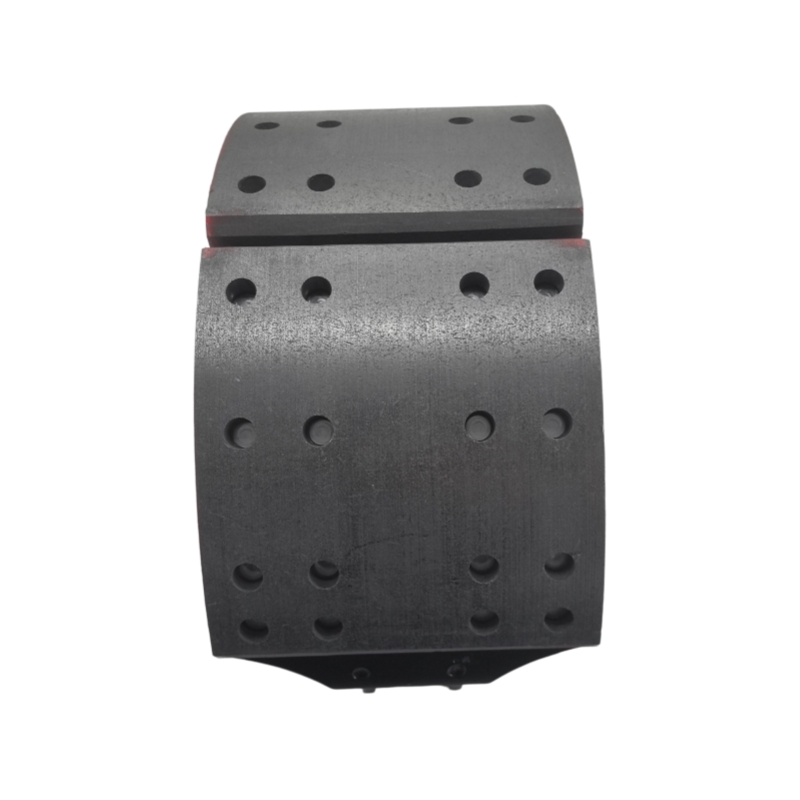

Outfitted with high-density, low-metallic non-asbestos friction blocks rated for 20,000 to 23,000 lbs GAWR duty cycles, the friction compound maintains a stable coefficient of friction across continuous operating temperatures reaching up to 750°F (400°C). By packaging matched oil-tempered return springs, zinc-dichromate coated anchor pins, and induction-hardened rollers inside every box, service technicians can perform complete axle overhauls without stocking fragmented hardware or reusing fatigued springs.
Key Features & Specifications
Target Q-Style Foundation Fitment: Purpose-built for standard North American 16.5" x 7" (4515Q / Q-Plus) commercial drum brake configurations across drive, steer, and trailer axles.
FMVSS-121 Certified Friction Formulation: Premium non-asbestos semi-metallic compound delivers short stopping distances, exceptional fade resistance, and minimal drum micro-grooving under full payload.
Precision-Coining Skeleton Arc: Heavy-gauge welded steel cores undergo hydraulic die calibration and gauge testing to ensure 100% full-surface lining-to-drum contact immediately upon installation.
Severe-Duty Anti-Corrosion Finish: Industrial electrostatic powder coating protects the steel shoe skeleton from road brine, chemical de-icers, and winter oxidants.

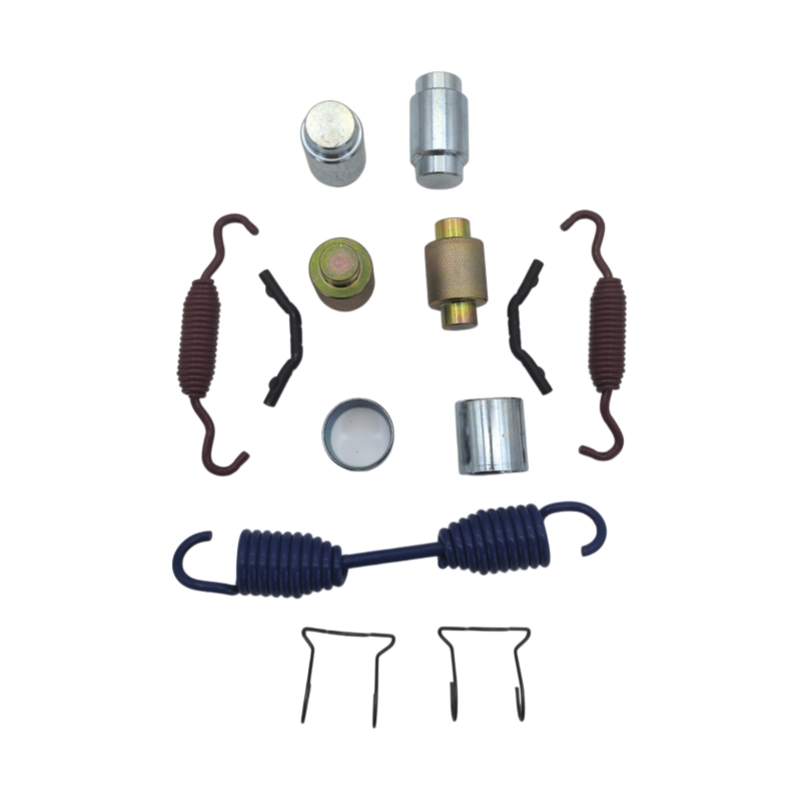

Consolidated Master Overhaul Set: Master kit includes 2 pre-riveted lined brake shoes paired with high-tensile return springs, anchor pins, and hardened rollers for immediate single-step installation.
Frequently Asked Questions (FAQ)
Q1: Which vehicle applications and axle systems are compatible with this 4515Q Brake Shoe Kit?
A: This kit is engineered for North American Class 7 and Class 8 commercial vehicles, including heavy tractors, flatbeds, dry freight vans, intermodal chassis, and trailers running 16.5" x 7" Meritor/Dana Q and Q-Plus foundation drum brakes.
Q2: What is the primary difference between a 4515Q Brake Shoe Kit and a 4515E kit?
A: The difference lies in the anchor end and hardware geometry: 4515Q utilizes the Meritor/Q-style dual-anchor pin quick-change design with enclosed roller and anchor pockets, whereas 4515E is configured for Eaton-style single-anchor pin setups with open slots.
Q3: Are the friction linings pre-riveted onto the steel brake shoes?
A: Yes. All brake shoes arrive pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting presses, ready for direct wheel-end mounting.
Q4: Why should hardware springs and rollers be replaced during every brake shoe replacement?
A: Operating friction heat permanently degrades spring elasticity and creates flat spots on roller contact zones. Reusing weakened hardware causes incomplete shoe retraction, continuous brake drag, drum glazing, and premature friction wear. Installing new hardware ensures balanced mechanical return action.
Q5: Do you support custom private labeling, laser web marking, and palletized export packaging?
A: Yes. As a direct manufacturing source, we support custom laser etching on steel shoe webs, private-brand master cartons, and export-grade pallet packaging tailored for North American parts distributors and fleet suppliers.
