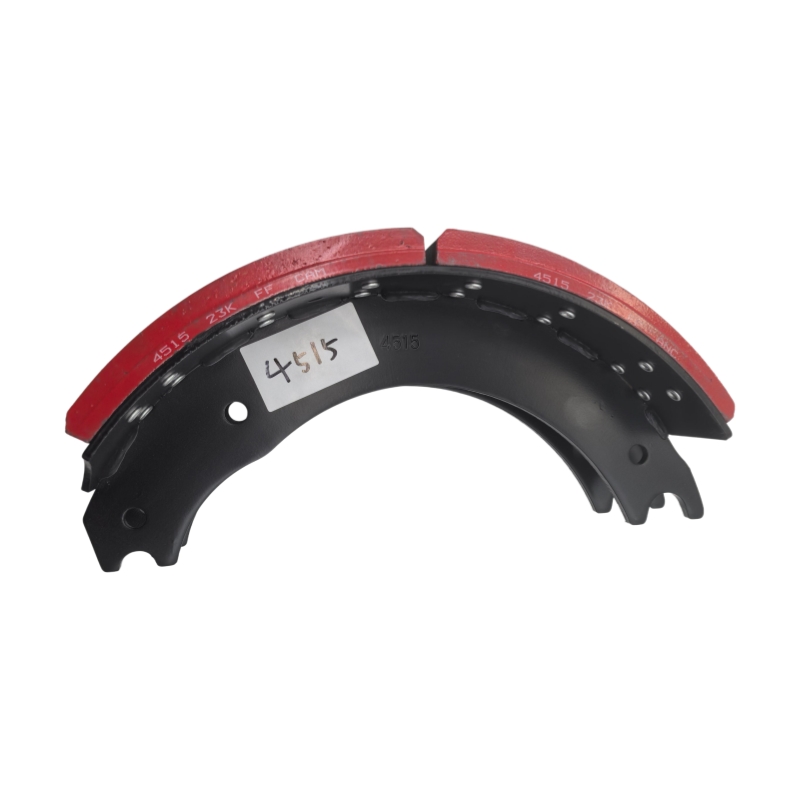

Engineered for Class 7–8 interstate freight tractors, bulk haulers, refrigerated vans, and heavy-duty vocational trailers across North America, this 4515 Brake Shoe Kit provides an all-inclusive single-axle overhaul assembly for standard 16.5" x 7" foundation drum brakes. Each master box integrates two heavy-gauge structural steel brake shoes mechanically fastened with premium non-asbestos friction blocks, alongside fatigue-resistant return springs, anchor pins, precision cam rollers, and retention hardware. Installing this unified overhaul package prevents shoe drag, balances mechanical release action, eliminates uneven lining taper wear, and streamlines preventative maintenance shop bay turnaround.
Delivering predictable stopping torque, smooth pneumatic modulation, and full FMVSS-121 compliance under demanding gross vehicle weight ratings requires foundation brake mechanics that withstand continuous thermal shock and mechanical fatigue. Severe stop-and-go regional logistics and steep grade descents generate extreme wheel-end operating temperatures, where weakened return springs and grooved rollers trigger delayed shoe retraction, constant lining drag, and accelerated drum heat-checking.Our 4515 Brake Shoe Kit delivers OEM-standard dimensional tolerances and heavy-duty structural reliability tailored for North American fleet operations.
Structural Steel Fabrication & Precision-Coining Arc Profile

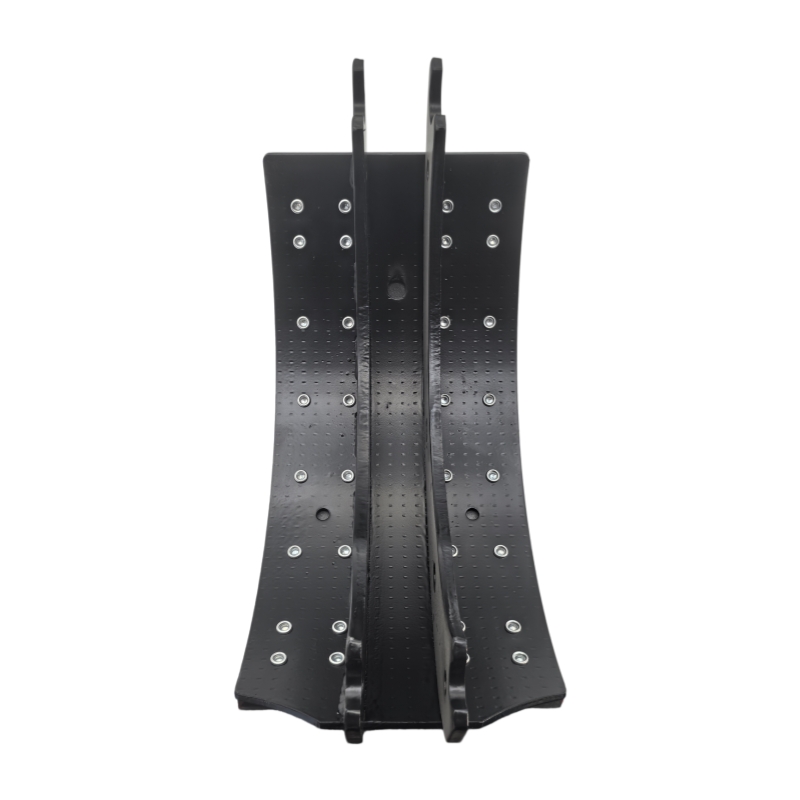

The foundation skeletons are manufactured from high-yield structural steel plate. The web and rim components are joined via high-speed automated projection welding and calibrated under high-tonnage precision coining dies. This forming process guarantees an exact 16.5-inch arc curvature that eliminates localized edge loading, initial chatter, and uneven drum pinching. The bare steel skeleton is fully shielded with an electrostatic powder coating to provide an impermeable barrier against highway road salt, moisture, and winter calcium chloride de-icing chemicals.
23K GAWR Friction Compound & Single-Step Wheel Overhaul

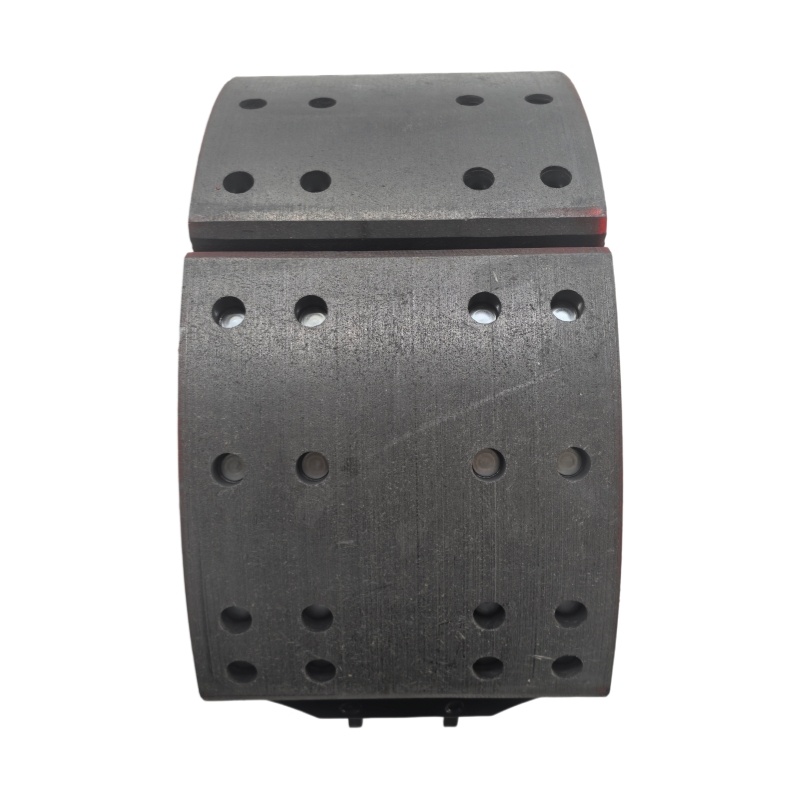

Outfitted with high-density, low-metallic non-asbestos friction blocks rated for 20,000 to 23,000 lbs GAWR commercial duty cycles, the friction compound maintains a stable friction coefficient across continuous operating temperatures up to 750°F (400°C). By supplying factory-matched oil-tempered return springs, case-hardened anchor pins, and induction-hardened rollers in a single SKU, technicians can complete comprehensive wheel-end overhauls in one shop session without reusing fatigued hardware.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for standard North American 16.5" x 7" (4515 standard) commercial drum brake configurations across drive, steer, and trailer axles.
FMVSS-121 Certified Friction Blocks: High-density non-asbestos semi-metallic formulation provides short stopping distances, exceptional thermal fade resistance, and low drum micro-grooving under full GCWR capacity.
Precision-Coining Skeleton Calibration: Hydraulic die-calibrated steel frames ensure 100% full-surface lining-to-drum contact immediately upon installation.
Severe-Duty Anti-Corrosion Finish: Industrial electrostatic powder coating shields the steel shoe skeleton from highway brine, moisture, and winter chemical oxidants.

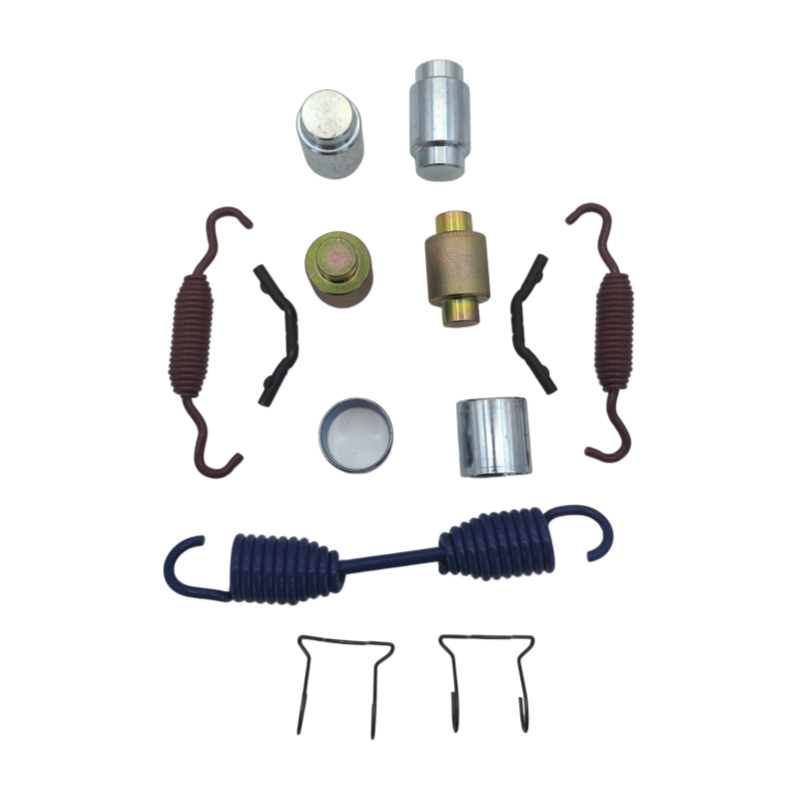

Master Overhaul Package: Bundles 2 pre-riveted lined brake shoes paired with fatigue-tested return springs, anchor hardware, and hardened rollers for immediate wheel-end servicing.
Frequently Asked Questions (FAQ)
Q1: Which vehicle applications and axle systems are compatible with this 4515 Brake Shoe Kit?
A: This kit is engineered for North American Class 7 and Class 8 commercial vehicles, including heavy tractors, flatbeds, dry freight vans, intermodal chassis, and refrigerated trailers equipped with standard 16.5" x 7" foundation drum brakes.
Q2: What is the main structural difference between a standard 4515 kit and specialized 4515Q / 4515E variants?
A: The difference centers on anchor end geometry and hardware configuration: 4515Q utilizes dual-anchor pin quick-change Q-style hardware, 4515E uses Eaton single-anchor pin layouts with open slots, while standard 4515 serves base foundation setups requiring corresponding return springs and roller sets.
Q3: Are the friction linings pre-attached to the steel brake shoe cores?
A: Yes. All brake shoes arrive pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting machinery, ready for direct axle installation.
Q4: Why should hardware springs and rollers be replaced during every brake shoe replacement?
A: Operating friction heat permanently degrades spring tension and wears flat spots on rollers. Reusing weakened hardware causes incomplete shoe retraction, continuous brake drag, drum glazing, and uneven lining taper. Installing new hardware restores proper mechanical return action.
Q5: Do you support custom private labeling, laser web marking, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we support custom part-number laser marking on shoe webs, private-brand master cartons, and export-grade pallet packaging for North American parts distributors and fleet suppliers.
