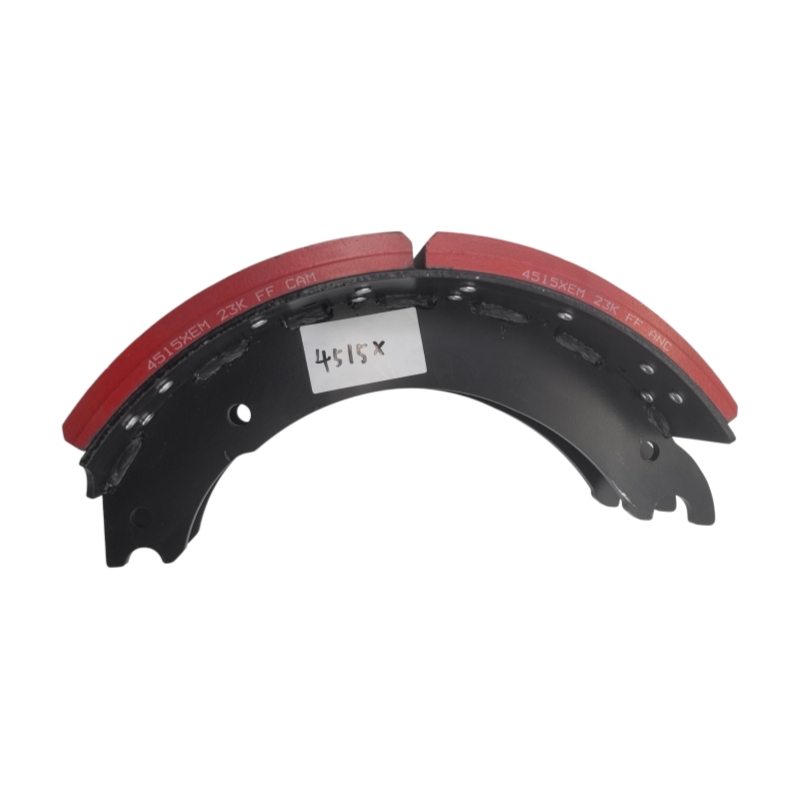

Engineered for Class 7–8 line-haul freight tractors, refrigerated reefers, dry vans, and severe-duty vocational trailers across North America, this 4515X Brake Shoe Kit delivers an all-in-one single-wheel overhaul solution for 16.5" x 7" heavy-duty foundation drum brakes. Each master package bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks, alongside fatigue-resistant return spring systems, case-hardened anchor pins, precision cam rollers, and retention hardware. Installing this unified assembly stops shoe dragging, balances mechanical release tension, prevents uneven lining taper wear, and minimizes scheduled maintenance shop bay downtime.
Maintaining consistent deceleration torque, balanced air-brake modulation, and full FMVSS-121 regulatory compliance under maximum gross axle ratings requires foundation brake components that withstand severe thermal and mechanical fatigue. Sustained downhill mountain descents and high-frequency urban stop-and-go routes generate extreme wheel-end heat, where softened return springs and grooved rollers lead to sluggish shoe retraction, continuous brake drag, and costly drum heat checking.Our 4515X Brake Shoe Kit provides OEM-standard dimensional tolerances and commercial-grade durability tailored for North American fleet operations.
Structural Steel Fabrication & Precision Coined Arc Profile

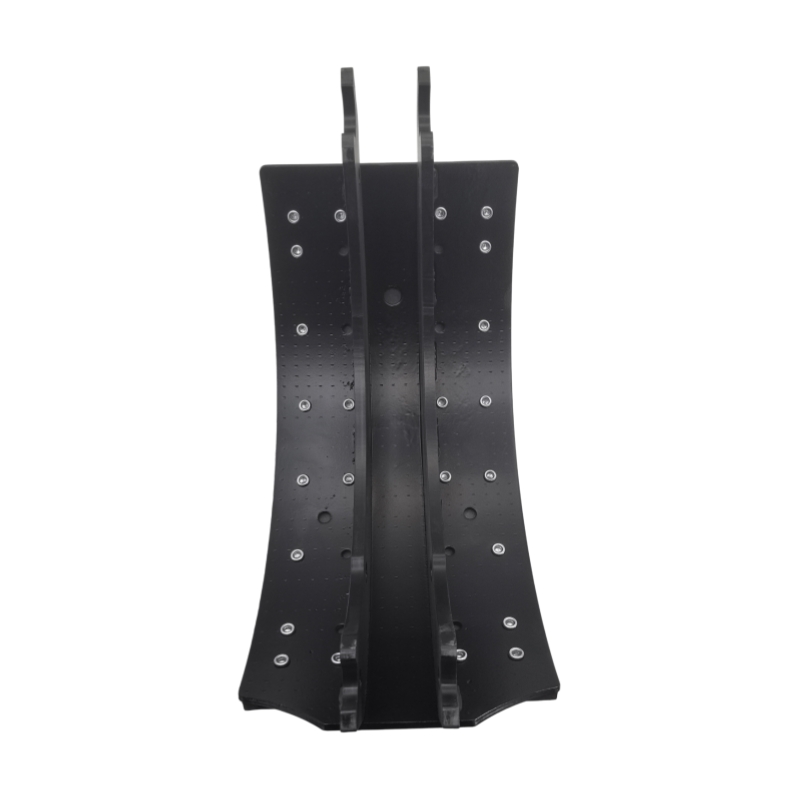

The foundation skeletons are manufactured from high-yield structural steel plate. The web and rim components are joined using automated projection welding and calibrated under high-tonnage precision coining dies. This process guarantees an exact 16.5-inch arc curvature that eliminates localized edge loading, initial chatter, and uneven drum pinching. The structural skeleton is fully shielded with an electrostatic powder coating to provide an impermeable barrier against highway road salt, moisture, calcium chloride, and winter chemical de-icers.
23K GAWR Friction Formulation & Single-Step Overhaul Hardware

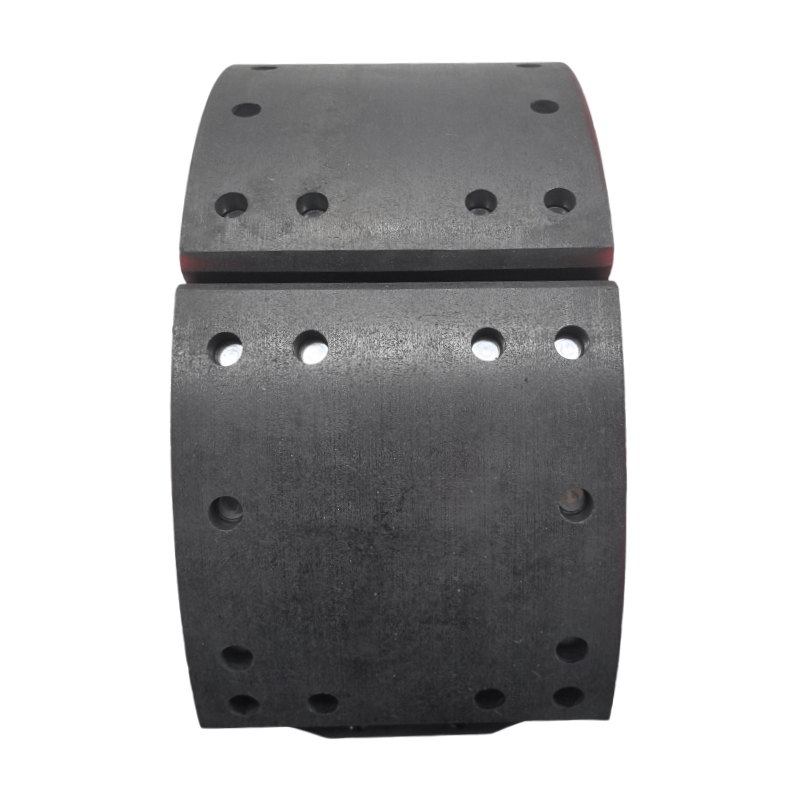

Outfitted with high-density, low-metallic non-asbestos friction blocks rated for 20,000 to 23,000 lbs GAWR duty cycles, the friction compound maintains a stable friction coefficient across continuous operating temperatures up to 750°F (400°C). By bundling matched oil-tempered return springs, corrosion-protected anchor pins, and induction-hardened rollers in a single SKU, technicians can complete comprehensive wheel-end rebuilds in one service bay session without reusing fatigued hardware.
Key Features & Specifications
Target 4515X Foundation Fitment: Purpose-built for standard North American 16.5" x 7" (4515X profile) commercial drum brake configurations across drive, steer, and trailer axles.
FMVSS-121 Certified Friction Blocks: High-performance non-asbestos semi-metallic compound delivers short stopping distances, exceptional thermal fade resistance, and minimal drum scoring under full payload.
Precision-Coining Skeleton Calibration: Hydraulic die-calibrated steel frames ensure 100% full-surface lining-to-drum contact immediately upon installation.
Severe-Duty Anti-Corrosion Finish: Industrial electrostatic powder coating protects the steel shoe skeleton from highway brine, calcium chloride, and winter oxidants.

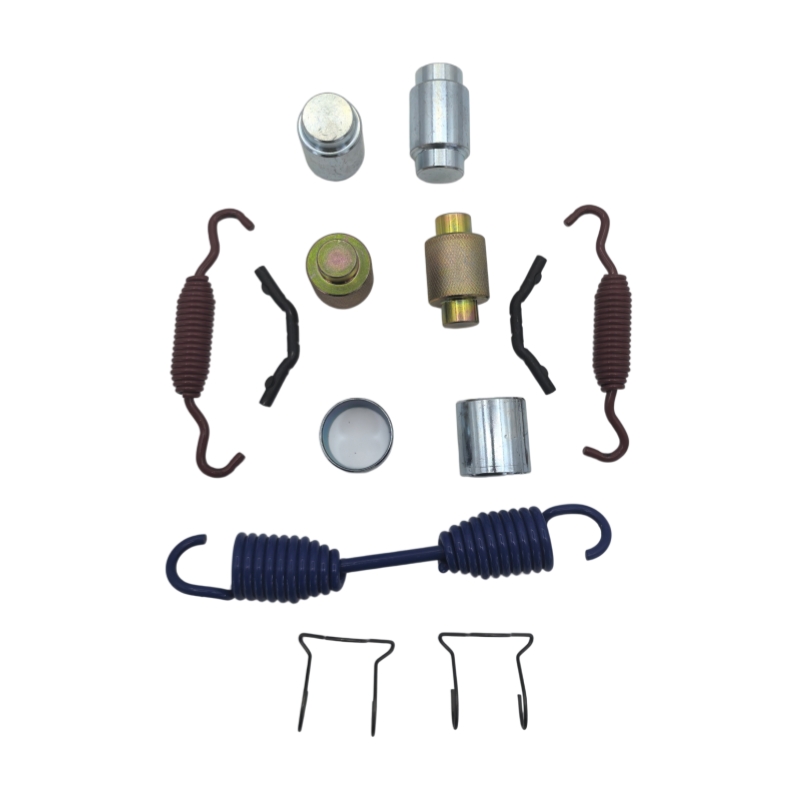

Consolidated Master Overhaul Package: Bundles 2 pre-riveted lined brake shoes paired with fatigue-tested return springs, anchor hardware, and hardened rollers for immediate wheel-end servicing.
Frequently Asked Questions (FAQ)
Q1: Which vehicle applications and axle systems are compatible with this 4515X Brake Shoe Kit?
A: This kit is engineered for North American Class 7 and Class 8 commercial vehicles, including heavy tractors, flatbeds, dry freight vans, intermodal chassis, and refrigerated trailers equipped with 16.5" x 7" foundation drum brakes.
Q2: What is the primary operational role of the 4515X profile within the 4515 foundation family?
A: The 4515X profile provides specific web geometry and anchor end tolerances designed for heavy-duty commercial axle configurations, ensuring seamless alignment and retraction when paired with corresponding overhaul hardware.
Q3: Are the friction linings pre-attached to the steel brake shoe cores?
A: Yes. All brake shoes arrive pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting presses, ready for direct axle installation.
Q4: Why should hardware springs and rollers be replaced during every brake shoe replacement?
A: Operating friction heat permanently degrades spring tension and creates flat spots on rollers. Reusing weakened hardware causes incomplete shoe retraction, continuous brake drag, drum glazing, and uneven lining taper. Installing new hardware restores proper mechanical return action.
Q5: Do you support custom private labeling, laser web marking, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we provide custom part-number laser marking on shoe webs, private-brand master cartons, and export-grade pallet packaging tailored for North American parts distributors and fleet suppliers.
