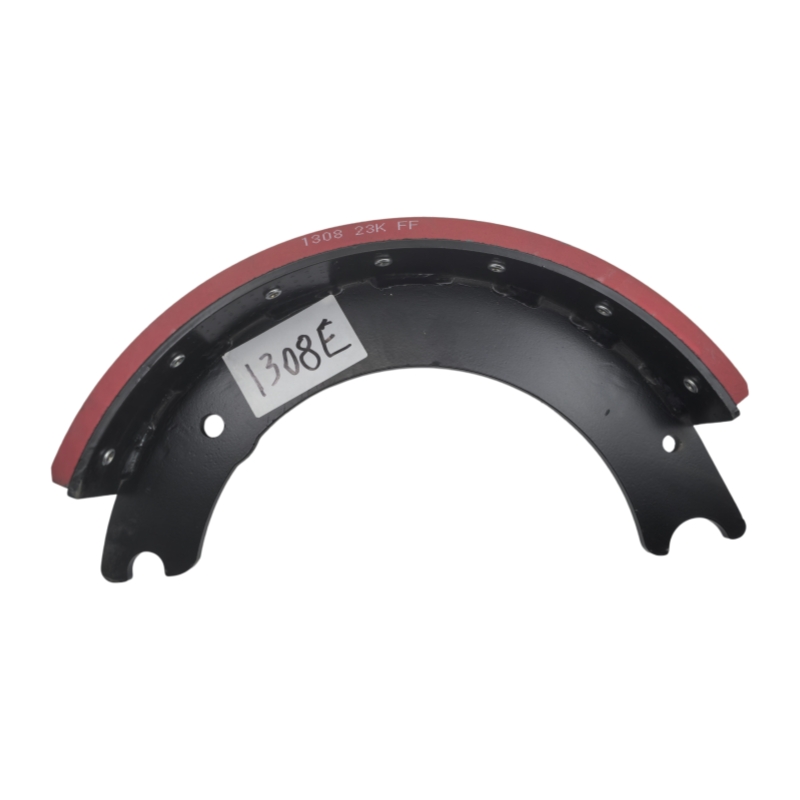

Designed for Class 7–8 line-haul tractors, intermodal container chassis, refrigerated reefers, and vocational trailers across North America, this 1308E Brake Shoe Kit provides a comprehensive single-wheel overhaul solution for 16.5" x 7" Eaton-style single-anchor foundation drum brakes. Each master package bundles two heavy-duty projection-welded steel brake shoes lined with premium non-asbestos friction blocks, paired with fatigue-resistant single-anchor return springs, retention clips, case-hardened rollers, and pivot pins. This all-in-one overhaul assembly eliminates shoe drag, restores proper mechanical return action, prevents uneven friction taper, and minimizes scheduled maintenance bay downtime.
Maintaining consistent deceleration torque, balanced air-brake modulation, and strict FMVSS-121 compliance under heavy gross axle weight ratings requires foundation brake mechanics that resist severe thermal and mechanical fatigue. Sustained downhill mountain descents and high-frequency urban stop-and-go routes generate extreme wheel-end heat, where weakened return springs and grooved rollers cause sluggish shoe release, constant brake dragging, and costly drum heat checking.Our 1308E Brake Shoe Kit delivers OEM-standard dimensional precision and commercial-grade durability tailored for North American fleet operations.
Structural Steel Fabrication & Precision Coined Arc Profile

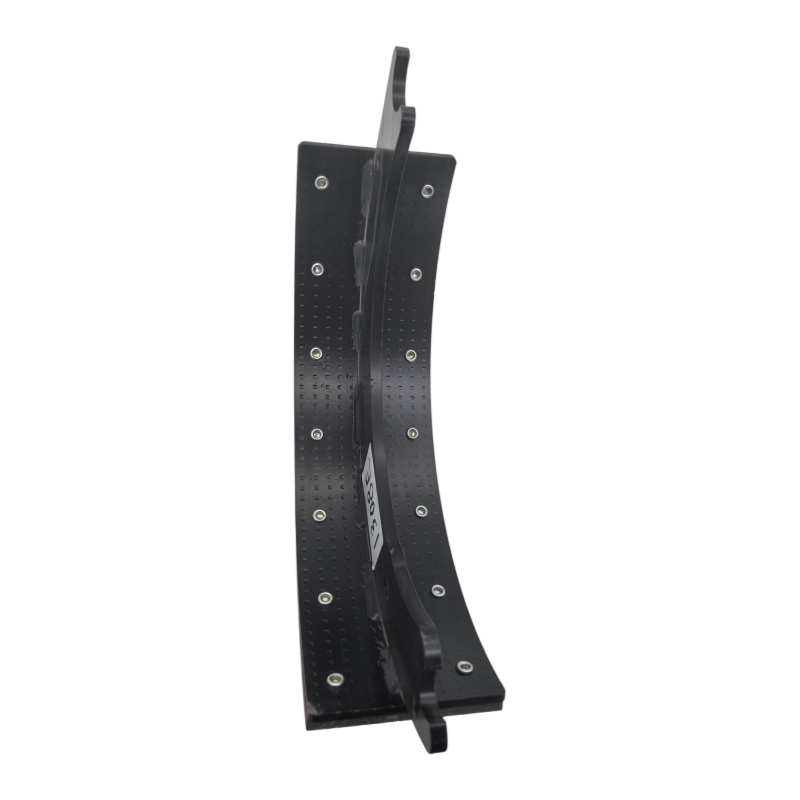

The foundation skeletons are manufactured from high-yield structural steel plate. The web and rim structures are joined using automated projection welding and calibrated under high-tonnage precision coining dies. This process guarantees an exact 16.5-inch arc curvature that prevents localized edge loading, initial chatter, and drum pinching. The structural skeleton is fully shielded with an electrostatic powder coating to provide an impermeable barrier against road salt, moisture, and aggressive winter chemical de-icers.
23K GAWR Friction Formulation & Single-Step Overhaul Hardware

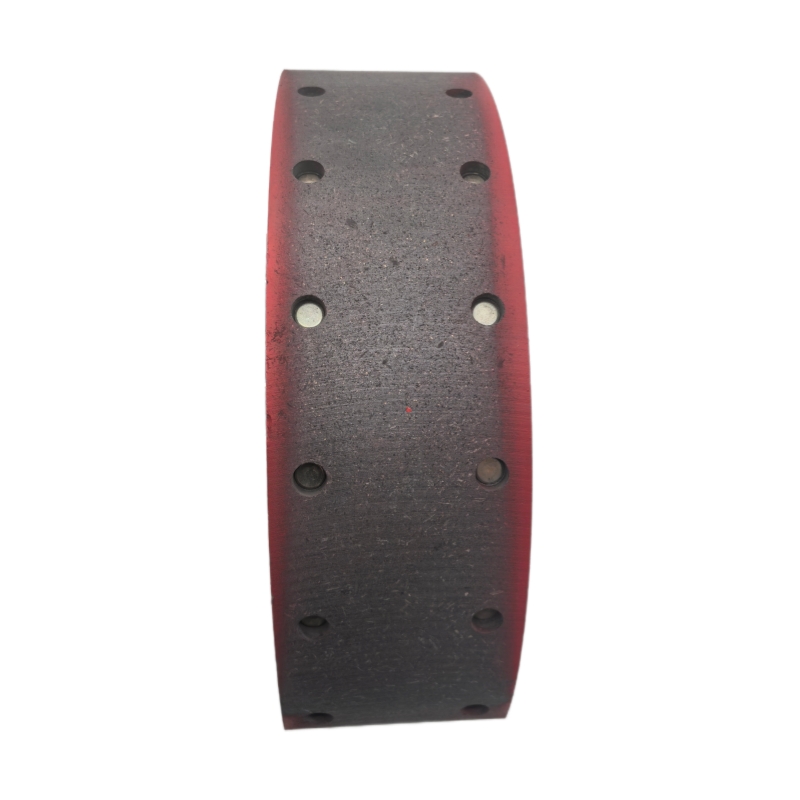

Outfitted with high-density, low-metallic non-asbestos friction blocks rated for 20,000 to 23,000 lbs GAWR duty cycles, the friction matrix maintains a stable friction coefficient across continuous operating temperatures up to 750°F (400°C). By bundling matched oil-tempered return springs, single-pin anchor retention hardware, and induction-hardened rollers in a single SKU, technicians can complete comprehensive wheel-end rebuilds in a single shop visit without reusing fatigued hardware.
Key Features & Specifications
Target 1308E Foundation Fitment: Purpose-built for standard North American 16.5" x 7" (1308E / 1443E compatible) Eaton-style single-anchor commercial drum brake configurations across drive and trailer axles.
FMVSS-121 Certified Friction Blocks: High-performance non-asbestos semi-metallic compound delivers short stopping distances, exceptional thermal fade resistance, and minimal drum scoring under full payload.
Precision-Coining Skeleton Calibration: Hydraulic die-calibrated steel frames ensure 100% full-surface lining-to-drum contact immediately upon installation.
Severe-Duty Anti-Corrosion Finish: Industrial electrostatic powder coating protects the steel shoe skeleton from highway brine, calcium chloride, and winter oxidants.

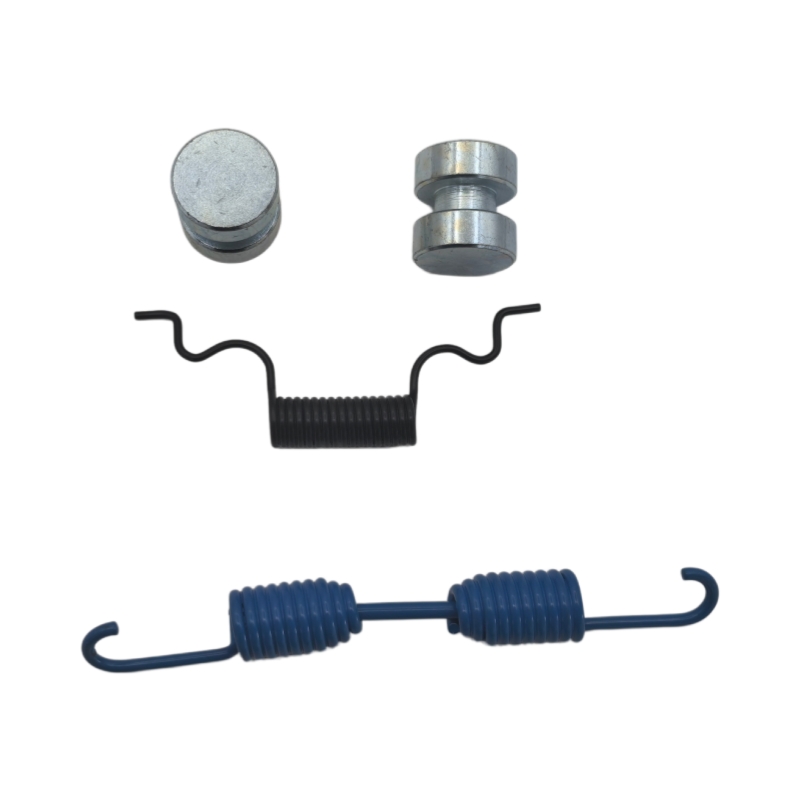

Consolidated Master Overhaul Package: Bundles 2 pre-riveted lined brake shoes paired with fatigue-tested return springs, single-anchor clips, and hardened rollers for immediate wheel-end servicing.
Frequently Asked Questions (FAQ)
Q1: Which commercial vehicle applications and axle systems are compatible with this 1308E Brake Shoe Kit?
A: This kit is engineered for North American Class 7 and Class 8 commercial vehicles, including heavy tractors, flatbeds, dry freight vans, intermodal chassis, and refrigerated trailers equipped with 16.5" x 7" Eaton single-anchor foundation drum brakes.
Q2: What is the primary structural difference between a 1308E Brake Shoe Kit and a 1308Q kit?
A: The difference lies in the anchor end and hardware geometry: 1308E is designed for Eaton-style single-anchor pin setups with open anchor slots and single-pin retention springs, whereas 1308Q is configured for Meritor/Q-style dual-anchor pin systems.
Q3: Are the friction linings pre-attached to the steel brake shoe cores?
A: Yes. All brake shoes arrive pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting presses, ready for direct axle installation.
Q4: Why should hardware springs and rollers be replaced during every brake shoe replacement?
A: Operating friction heat permanently degrades spring tension and creates flat spots on rollers. Reusing weakened hardware causes incomplete shoe retraction, continuous brake drag, drum glazing, and uneven lining taper. Installing new hardware restores proper mechanical return action.
Q5: Do you support custom private labeling, laser web marking, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we provide custom part-number laser marking on shoe webs, private-brand master boxes, and export-grade pallet packaging tailored for North American parts distributors and fleet suppliers.
