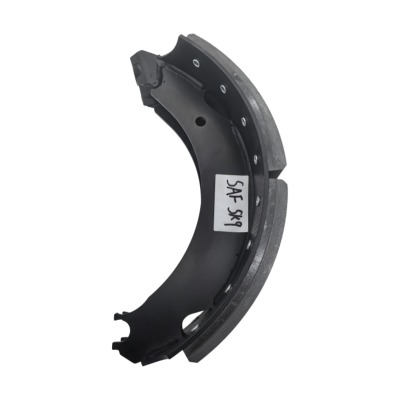

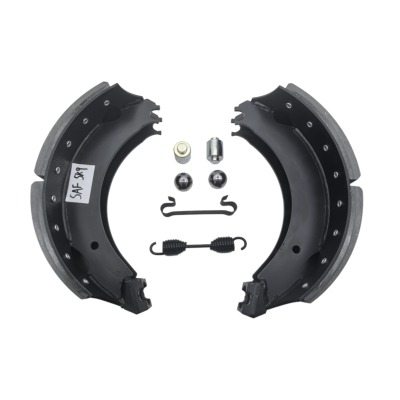

Engineered for North American intermodal transport, heavy-haul lowboys, and specialized freight carriers running SAF-Holland running gear, this SAF/SK9 180/200 Brake Shoe Kit provides a comprehensive single-axle overhaul assembly. Matching 420×180mm (SK9 180) and 420×200mm (SK9 200) European-spec drum profiles, each master kit contains high-rigidity structural steel shoes pre-riveted with low-metallic non-asbestos friction blocks. Bundled with fatigue-tested return springs, SAF-configured anchor pins, retention clips, and hardened rollers, this package delivers consistent stopping power, eliminates shoe drag, and minimizes fleet maintenance turnaround hours.
Operating specialized logistics chassis and imported flatbed trailers under severe line-haul cycles requires foundation brake components that maintain strict DOT and FMVSS-121 compliance while resisting intense thermal degradation. Our SAF/SK9 180/200 Brake Shoe Kit bridges original factory precision with the rugged durability demanded by North American commercial fleet operations.
High-Yield Steel Fabrication and Calibrated Geometry

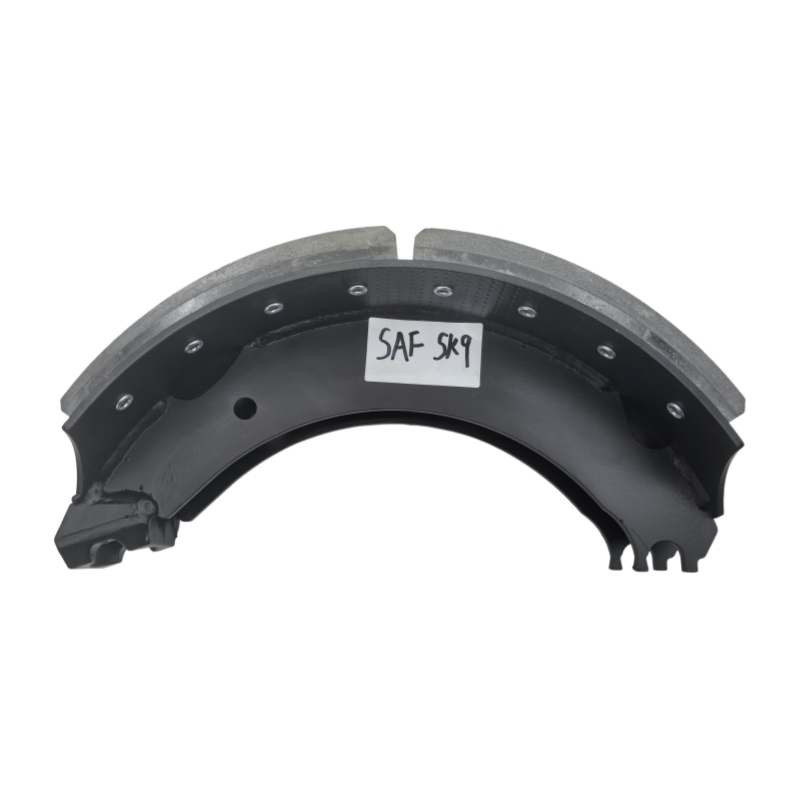

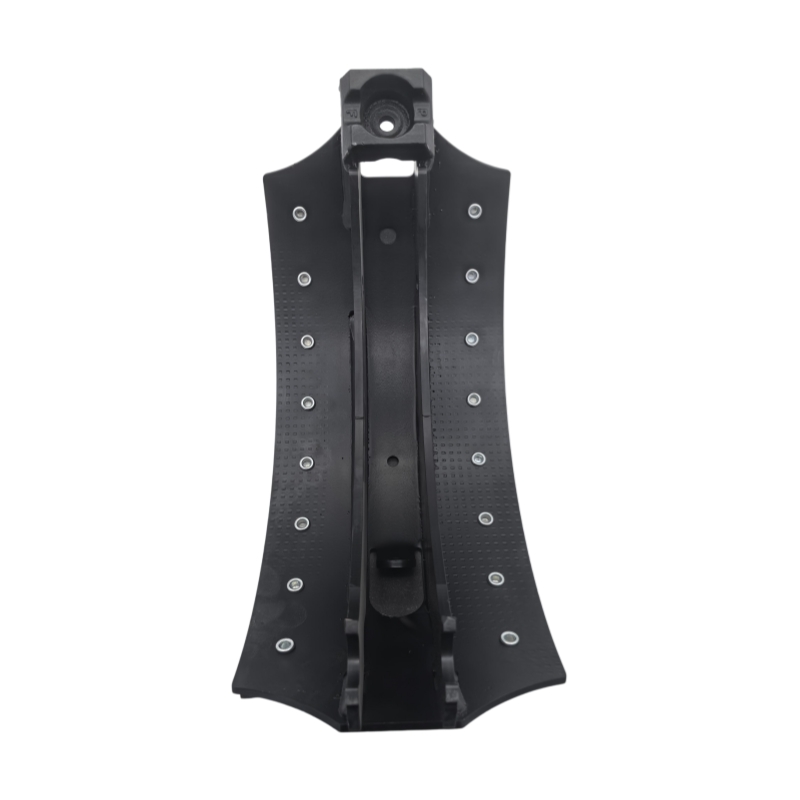

The foundation skeleton is constructed from heavy-gauge structural steel plate. The web and rim components are joined using automated projection welding , followed by high-tonnage precision coining die calibration to guarantee an exact 420mm arc radius. This structural profiling prevents localized edge pinching, hot-spotting, and chatter against standard brake drums. The entire frame is fully sealed with an electrostatic powder finish to withstand winter road salt, moisture, and aggressive magnesium chloride de-icing chemicals.
Low-Metallic Friction Matrix and Consolidated Axle Maintenance

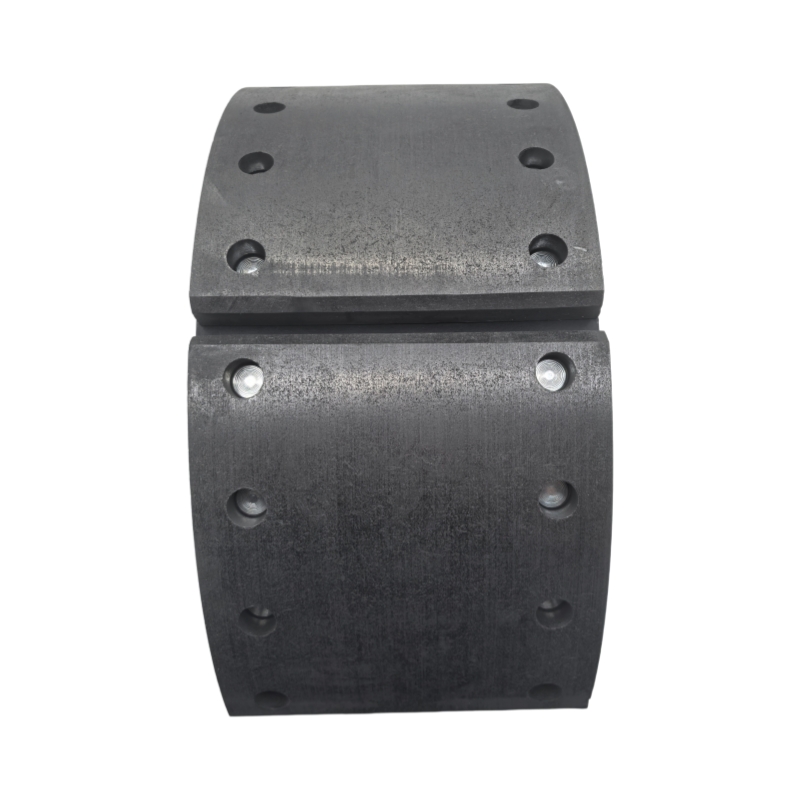

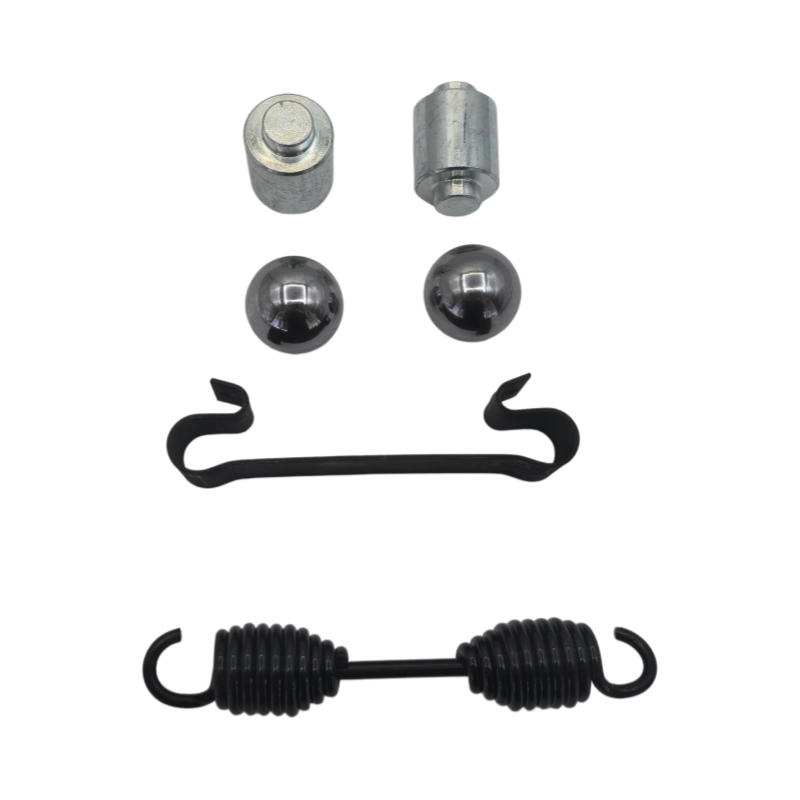

Formulated for 20,000 to 25,000 lbs GAWR ratings , our premium non-asbestos friction linings maintain a stable coefficient of friction up to 750°F (400°C) with low drum micro-abrasion. Reusing fatigued hardware during shoe servicing causes incomplete retraction and uneven wear. By packaging dedicated SAF-type extension return springs, wear-resistant anchor rollers, and keeper pins in a single SKU , technicians can complete an axle overhaul in a single shop turn without compromising braking balance.
Key Features & Specifications
FAQ
Q1: Which North American commercial trailers use the SAF/SK9 180/200 Brake Shoe Kit?
A: This overhaul kit is designed for North American commercial trailers, heavy-haul lowboys, flatbeds, and intermodal chassis equipped with SAF-Holland 420mm drum brake axles , accommodating both 180mm (SK9 180) and 200mm (SK9 200) configurations.
Q2: How can I verify if my axle requires the 180mm or 200mm width shoe?
A: Inspect the trailer suspension identification plate or measure the shoe rim width. The 180mm width (approx. 7.09") fits standard axle capacities , while the 200mm width (approx. 7.87") is designated for higher payload or severe-duty applications.
Q3: Are the friction linings pre-attached to the steel skeletons?
A: Yes. All shoes arrive pre-assembled with heavy-duty non-asbestos friction blocks mechanically fastened via automated high-tonnage riveting machinery, ready for immediate installation.
Q4: Why is it necessary to install new hardware with every shoe replacement?
A: Reusing heat-weakened springs or grooved rollers prevents full shoe retraction, causing continuous brake drag, overheated drums, and premature friction wear. Installing new hardware restores balanced mechanical return action.
Q5: Do you provide private labeling, laser web marking, and palletized export packaging?
A: Yes. As a direct manufacturing source , we provide custom part-number laser marking on steel webs, private-label master boxes, and export-grade pallet packaging for fleet suppliers and distributors.
