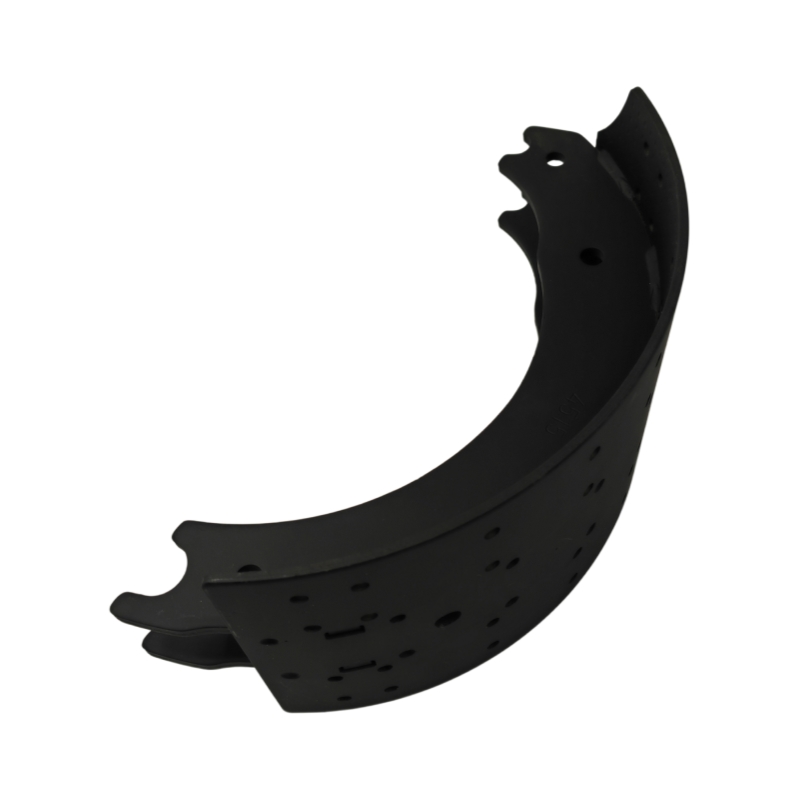

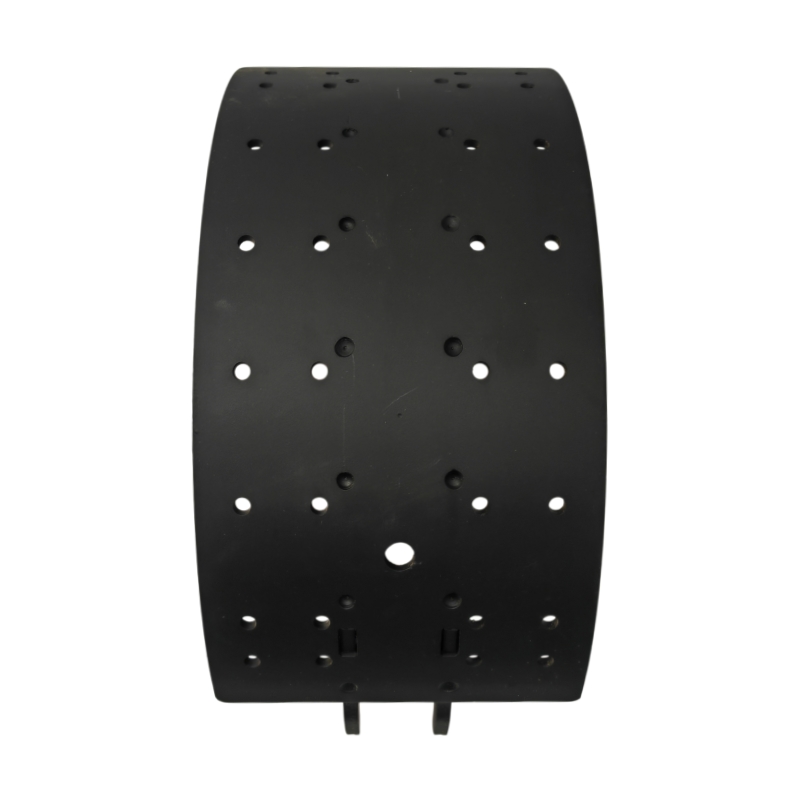

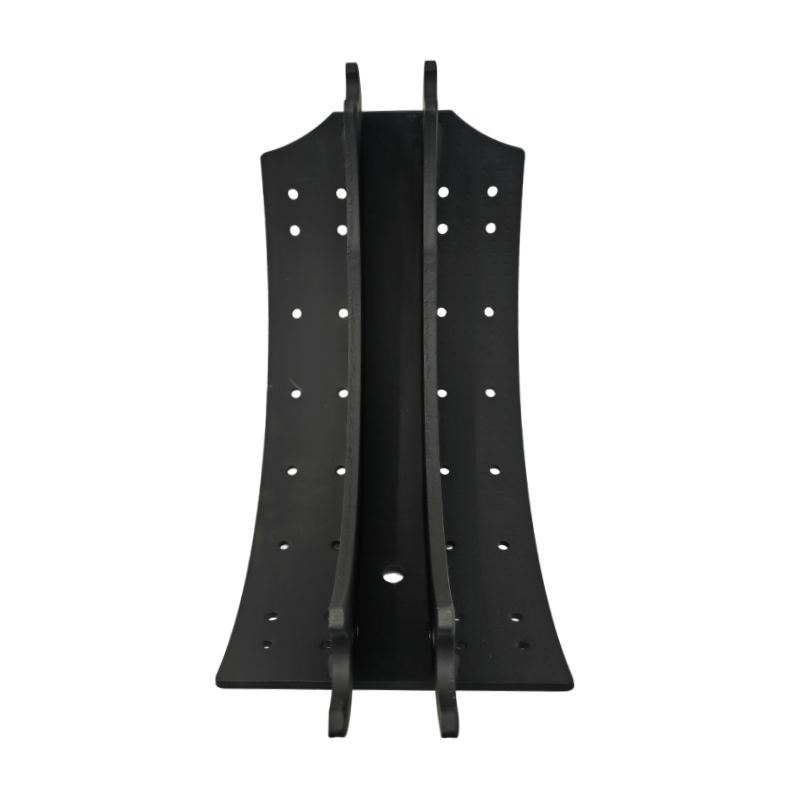

Engineered for Class 7–8 interstate freight tractors, container chassis, refrigerated reefers, and severe-duty vocational trailers across North America, this 4515 Brake Shoe provides a heavy-duty unlined steel foundation core for standard 16.5" x 7" commercial drum brake assemblies. Fabricated from high-yield structural steel plate and calibrated under high-tonnage precision dies, this bare brake shoe skeleton delivers structural rigidity, true arc curvature, and exact anchor geometry to prevent torsional flexing, stop shoe chatter, and optimize custom lining reline programs.
Maintaining structural integrity and balanced brake foundation geometry under heavy gross axle loads is vital for commercial fleet safety and DOT/FMVSS-121 compliance across North American long-haul freight corridors. Heavy braking cycles and continuous mechanical vibration can cause low-grade shoe skeletons to twist, distorting the anchor slots and leading to uneven lining contact or premature friction block cracking. Our 4515 Brake Shoe unlined steel skeleton delivers genuine OEM-level dimensional accuracy and heavy-duty structural durability tailored for commercial reline shops, fleets, and parts distributors.
Automated Projection Welding & High-Tonnage Die Coining
Each 4515 shoe core is manufactured from heavy-gauge structural steel. The web and table rim components are joined using automated robotic projection welding, ensuring high weld penetration and resistance against severe shear stress. After welding, the entire skeleton undergoes hydraulic die-coining to guarantee an exact 16.5-inch arc radius. This strict contour alignment eliminates localized high-pressure contact spots, edge pinching, and uneven taper wear when friction blocks are installed.
Precision Pivot Geometry & Anti-Rust Protection
Built specifically to match standard North American foundation geometry, the anchor end and roller pockets are CNC-machined to tight tolerances, ensuring smooth pivot action and preventing roller binding. The bare steel skeleton is fully treated with an industrial electro-deposited or electrostatic powder coating, providing a robust barrier against road salts, moisture, calcium chloride de-icers, and atmospheric oxidation during extended storage and severe road service.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for standard North American 16.5" x 7" (4515 standard) commercial drum brake configurations across drive, steer, and trailer axles.
High-Strength Steel Construction: Fabricated from heavy-duty structural steel plate with automated projection welding to prevent web distortion and cracking under heavy torque.
Precision Die-Coined Arc: Hydraulic die calibration ensures a 100% true arc radius for seamless lining attachment and full-surface contact with 16.5-inch brake drums.
Factory CNC-Machined Pivot Ends: Engineered anchor and roller pockets prevent mechanical binding and ensure smooth return action with standard 4515 hardware sets.
Industrial Anti-Corrosion Finish: High-adhesion electrostatic protective coating shields the steel frame against road brine, winter chemical de-icers, and rust.
Standard Rivet Hole Layout: CNC-punched rivet hole pattern allows direct mounting of standard 4515 series non-asbestos friction blocks.
Frequently Asked Questions (FAQ)
Q1: What axle configurations and vehicle platforms are compatible with this 4515 Brake Shoe?
A: This unlined 4515 shoe core is designed for North American Class 7 and Class 8 commercial vehicles, including heavy highway tractors, flatbeds, refrigerated reefers, dry vans, and container chassis equipped with 16.5" x 7" foundation drum brakes.
Q2: Does this 4515 Brake Shoe come with friction linings or hardware included?
A: No. This SKU is a bare, unlined steel brake shoe skeleton designed specifically for reline facilities, brake rebuilding shops, and fleet distributors who attach their own friction linings and source hardware separately.
Q3: Can this bare steel shoe handle severe-duty commercial payloads?
A: Yes. The heavy-gauge structural steel core and projection-welded web structure are engineered and tested to support standard commercial ratings from 20,000 to 23,000 lbs GAWR under continuous line-haul and vocational operating conditions.
Q4: How does the die-coined arc curvature benefit the reline process?
A: High-tonnage hydraulic die calibration ensures a uniform 16.5-inch arc radius, which guarantees that newly riveted friction linings sit flush against the rim table and achieve balanced full-surface contact with the brake drum without edge pinching.
Q5: Do you offer custom part number stamping, laser marking, and bulk palletized shipping?
A: Yes. We support custom web laser etching for OE/distributor part numbers, private branding options, and moisture-protected export pallet packing for containerized shipments.
