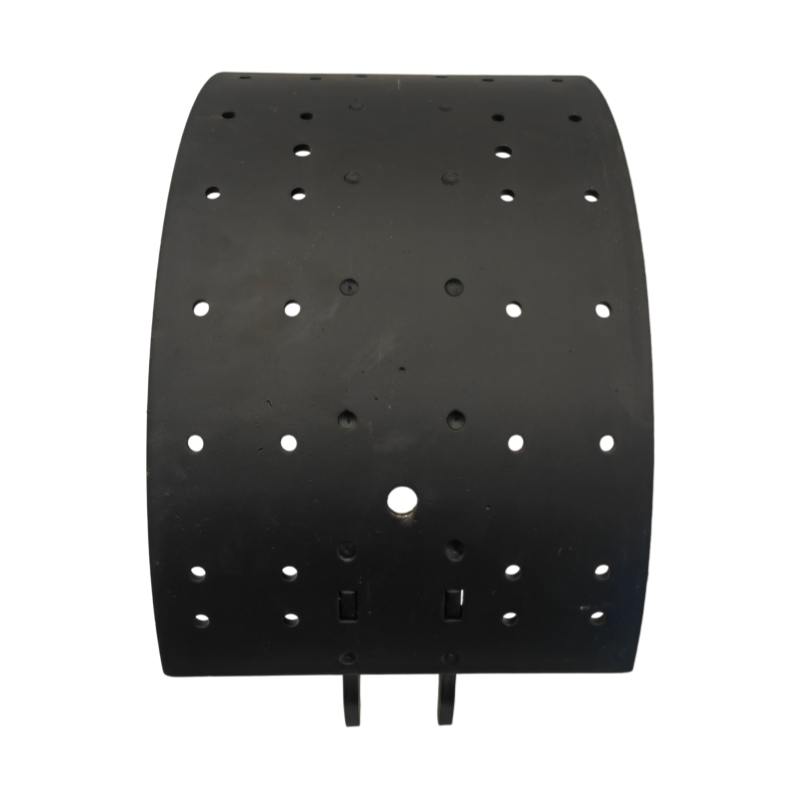

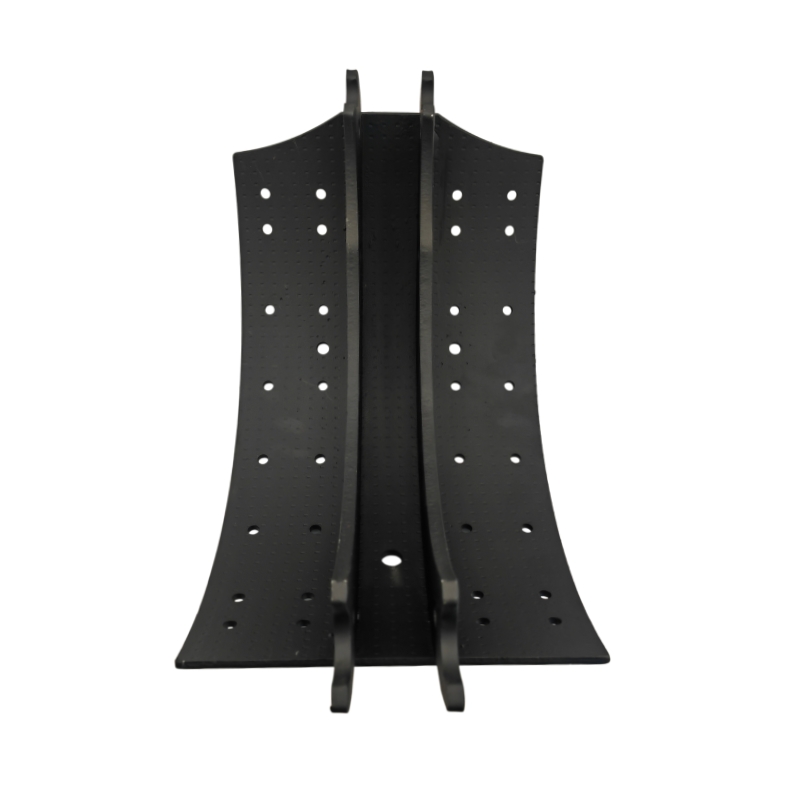

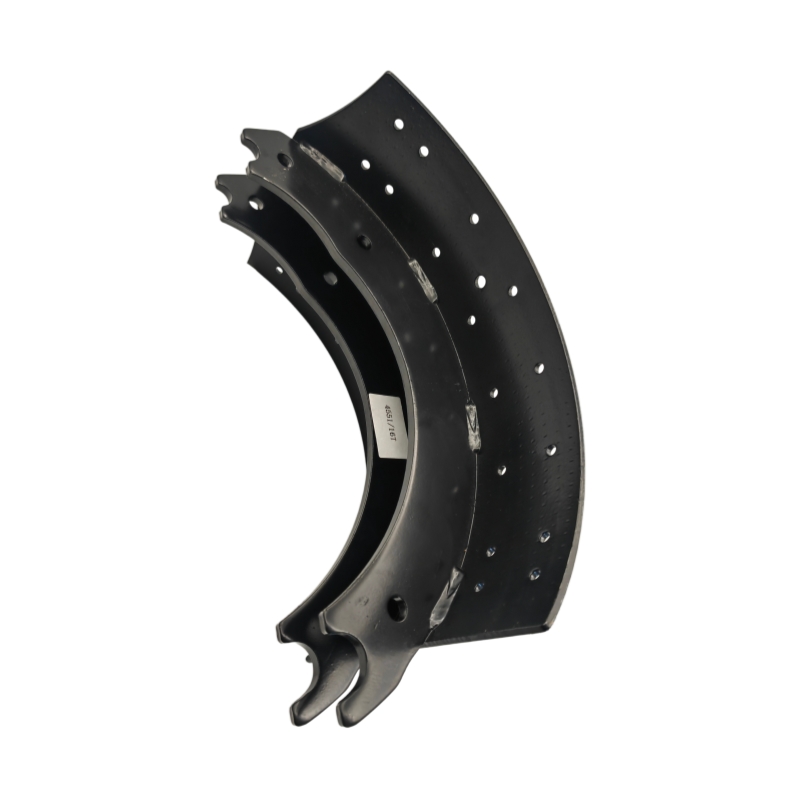

Engineered for Class 7–8 interstate freight tractors, vocational dump trucks, refuse chassis, and commercial front-steer or auxiliary lift axles across North America, this 4551 Brake Shoe provides a heavy-duty unlined steel foundation core for standard 15" x 4" drum brake assemblies. Fabricated from high-yield structural steel plate and calibrated under high-tonnage precision dies, this bare brake shoe skeleton delivers structural rigidity, true arc curvature, and exact pivot geometry to prevent torsional flexing, eliminate vibration chatter, and optimize custom lining reline programs.
Maintaining steering axle stability, balanced braking torque, and strict DOT/FMVSS-121 compliance under heavy front axle loading is essential for commercial fleet safety and control across North American highway corridors. Continuous steering-geometry torque spikes and high-frequency thermal cycling can cause substandard steer-axle shoe skeletons to twist, distorting the anchor pockets and causing uneven friction contact or localized lining cracking. Our 4551 Brake Shoe unlined steel skeleton delivers genuine OEM-level dimensional accuracy and heavy-duty structural durability tailored for commercial reline facilities, fleets, and parts distributors.
Automated Projection Welding & High-Tonnage Die Coining
Each 4551 shoe skeleton is manufactured from heavy-gauge structural steel. The web plate and rim table are joined using automated robotic projection welding, ensuring high weld penetration and resistance against severe shear stress. Following welding, the entire skeleton undergoes hydraulic die-coining to guarantee an exact 15-inch arc radius. This strict contour alignment eliminates localized edge pinching, hot spots, and uneven taper wear when friction blocks are mounted.
Precision Pivot Geometry & Anti-Rust Protection
Built specifically to match standard North American 15" x 4" steer axle foundation geometry, the anchor end and roller pockets are CNC-machined to tight tolerances, ensuring smooth pivot action and preventing roller binding. The bare steel skeleton is fully treated with an industrial electro-deposited or electrostatic powder coating, providing a robust barrier against road salts, moisture, calcium chloride de-icers, and atmospheric oxidation during extended storage and severe road service.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for standard North American 15" x 4" (4551 standard) commercial front-steer and auxiliary axle drum brake assemblies.
High-Strength Steel Construction: Fabricated from heavy-duty structural steel plate with automated projection welding to prevent web distortion and cracking under heavy torque.
Precision Die-Coined Arc: Hydraulic die calibration ensures a 100% true 15-inch arc radius for seamless lining attachment and balanced surface contact with brake drums.
Factory CNC-Machined Pivot Ends: Engineered anchor and roller pockets prevent mechanical binding and ensure smooth return action with standard 4551 hardware sets.
Industrial Anti-Corrosion Finish: High-adhesion electrostatic protective coating shields the steel frame against road brine, winter chemical de-icers, and rust.
Standard Rivet Hole Layout: CNC-punched rivet hole pattern allows direct mounting of standard 4551 series non-asbestos friction blocks.
Frequently Asked Questions (FAQ)
Q1: What axle configurations and vehicle platforms are compatible with this 4551 Brake Shoe?
A: This unlined 4551 shoe core is designed for North American Class 7 and Class 8 commercial vehicles, primarily fitting front steer axles and auxiliary/lift axle applications equipped with standard 15" x 4" foundation drum brakes.
Q2: Does this 4551 Brake Shoe come with friction linings or hardware included?
A: No. This SKU is a bare, unlined steel brake shoe skeleton designed specifically for reline facilities, brake rebuilding shops, and fleet distributors who attach their own friction linings and source hardware separately.
Q3: How does the 15" x 4" 4551 profile differ from standard 16.5" x 7" drive/trailer shoes?
A: The 4551 profile is specifically dimensioned for smaller 15-inch brake drums with a 4-inch shoe table width, commonly designated for front steering and auxiliary axles, whereas 16.5" x 7" shoes (such as 4515 or 4707) are engineered for heavier drive and trailer positions.
Q4: Can this bare steel shoe handle severe-duty commercial payloads?
A: Yes. The heavy-gauge structural steel core and projection-welded web structure are engineered and tested to support standard front-axle commercial ratings from 12,000 to 14,600+ lbs GAWR under continuous line-haul and vocational operating conditions.
Q5: Do you offer custom part number stamping, laser marking, and bulk palletized shipping?
A: Yes. We support custom web laser etching for OE/distributor part numbers, private branding options, and moisture-protected export pallet packing for containerized shipments.
