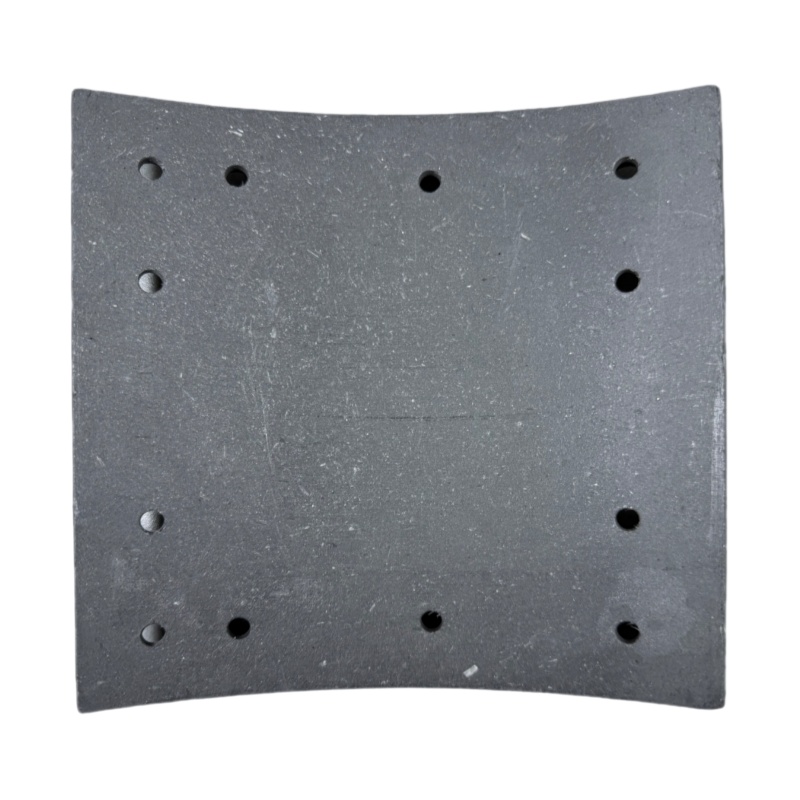

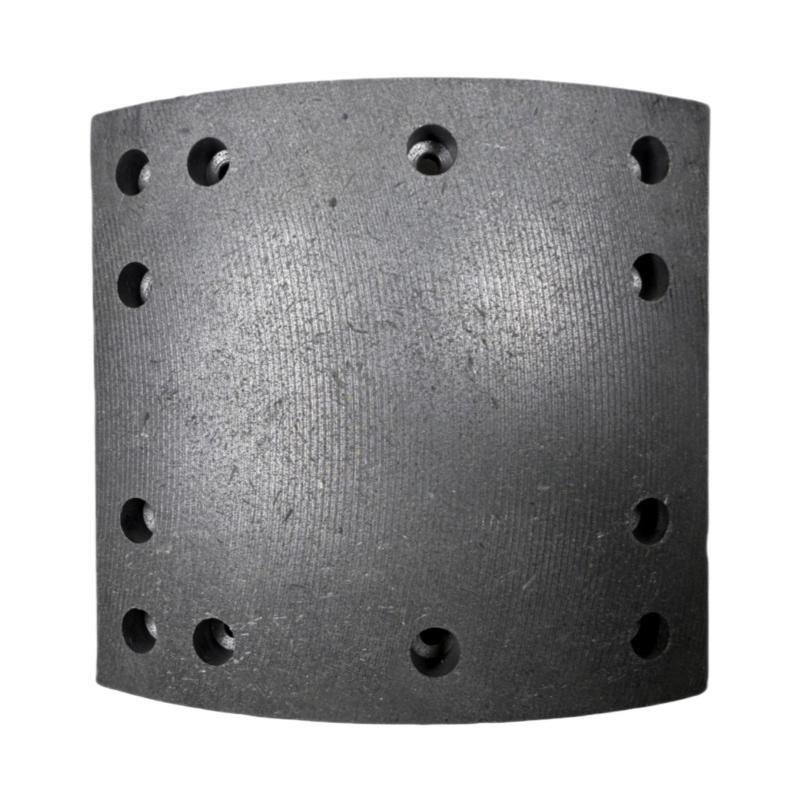

Engineered for Class 7–8 commercial tractors, heavy-haul lowboys, intermodal chassis, and specialized trailers utilizing 420 x 200mm foundation drum brake assemblies, these Brake Linings WVA 19037 provide an exceptional wheel-end overhaul friction solution. Molded specifically to fit standard 19037 profile foundation brake shoe tables, this premium low-metallic non-asbestos friction block set delivers responsive air-brake stopping power, outstanding high-temperature fade resistance, and balanced drum wear under demanding transport duty cycles.
Maintaining predictable deceleration control, balanced directional stability, and strict compliance with commercial fleet safety standards under heavy gross axle weights requires wheel-end friction materials that withstand sustained thermal and mechanical fatigue. Continuous highway freight transit, heavy port drayage, and prolonged downhill mountain descents generate intense friction heat, where substandard lining blocks suffer accelerated thickness decay, surface glazing, and aggressive drum grooving.Our Brake Linings WVA 19037 deliver genuine OEM-level dimensional accuracy and heavy-duty structural durability tailored for professional fleet maintenance operations.
High-Density Non-Asbestos Friction Compound
Formulated with an advanced low-metallic, non-asbestos matrix, each 19037 friction segment undergoes high-pressure hydraulic molding followed by controlled thermal post-curing. This resilient formulation maintains a stable, uniform friction coefficient across severe operating temperatures up to 750°F (400°C), preventing high-temperature brake fade and ensuring immediate pedal modulation during critical heavy-load deceleration.
Precision Hole Pattern & Drum-Friendly Wear Profile
Every lining block is manufactured with factory-drilled, chamfered rivet holes that align accurately with standard 420 x 200mm commercial brake shoe steel skeletons. This ensures maximum mechanical shear resistance and vibration stability under severe braking torque spikes. The smooth friction matrix encourages uniform contact across 420mm commercial brake drums, significantly mitigating localized hot spots, drum grooving, and edge taper wear.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for commercial trailers and trucks running standard WVA 19037 profile foundation brake shoes on 420 x 200mm drum assemblies.
Certified High-Safety Formulation: Premium non-asbestos compound provides short stopping distances, low dust output, and dependable thermal stability under maximum gross axle weight.
Superior Fade Resistance: Thermally cured to operate continuously under heavy line-haul cycles with consistent friction levels up to 750°F (400°C).
Precision Rivet Alignment: CNC-machined rivet hole positions guarantee effortless mechanical fastening and maximum shear load integrity on shoe tables.
Extended Drum & Lining Life: Smooth, balanced friction matrix minimizes drum micro-grooving, heat cracking, and uneven shoe taper wear.
Frequently Asked Questions (FAQ)
Q1: Which axle types and vehicle configurations are compatible with these Brake Linings WVA 19037?
A: These friction blocks are engineered for commercial trucks, heavy flatbeds, lowboys, and intermodal container chassis equipped with European-style 420 x 200mm foundation drum brakes (such as BPW SN4220 and compatible setups).
Q2: What is the primary dimensional specification for the WVA 19037 lining profile?
A: The WVA 19037 profile is specifically engineered for 420mm diameter commercial brake drums utilizing wide 200mm brake shoe tables (420 x 200mm).
Q3: Are the rivet holes factory pre-drilled in the lining blocks?
A: Yes. All 19037 lining segments arrive precision-drilled and counterbored to match industry standard rivet layouts for immediate mechanical fastening onto bare steel shoe cores.
Q4: How do these linings perform under sustained downhill braking and high-temperature conditions?
A: The friction material undergoes a specialized thermal post-curing process to prevent glazing and brake fade, ensuring rapid heat dissipation and reliable torque recovery under heavy braking cycles.
Q5: Can you provide customized packaging, edge-code stamping, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we provide custom part-number edge printing, private-brand packaging boxes, and export-grade pallet packaging tailored for commercial parts distributors and fleet suppliers.
