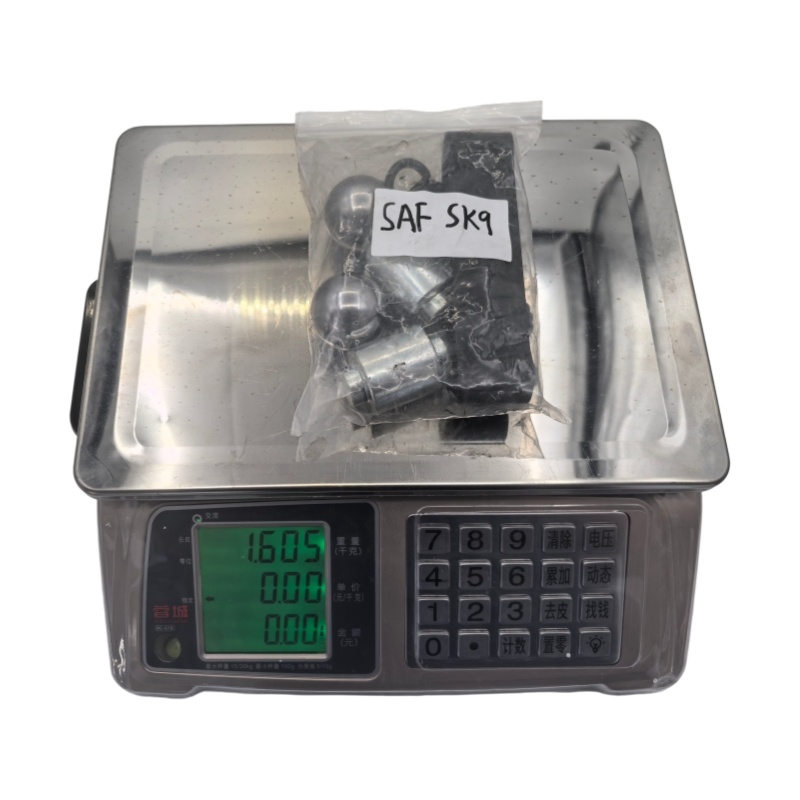

Engineered for North American intermodal transport, heavy-haul lowboys, and commercial flatbeds running SAF-Holland running gear, the SAF SK9 Repair Kit provides a comprehensive single-wheel foundation overhaul solution. Tailored specifically to service 420 x 180mm (SK9 180) and 420 x 200mm (SK9 200) trailer axle drum systems using SAF/SK9 180 and SAF/SK9 200 foundation brake shoes, this kit integrates high-strength dual-spring return systems, precision SAF-configured anchor pins, retaining clips, induction-hardened rollers, and anti-friction bushings. Upgrading worn wheel-end components with this single-SKU overhaul set stops shoe dragging, balances mechanical retraction pull force, and cuts preventative maintenance bay downtime.
Operating specialized drop-deck chassis, container chassis, and multi-axle freight trailers across demanding North American highway corridors subjects foundation brakes to extreme thermal cycling and intense mechanical vibration. Over extended service intervals, sustained friction heat weakens return spring elasticity and develops flat spots on cam rollers, leading to sluggish shoe release, accelerated lining taper wear, and hazardous drum heat-checking.Our SAF SK9 Repair Kit delivers genuine OEM-level dimensional accuracy and severe-duty metallurgy engineered specifically for North American fleet operations.
High-Tensile Metallurgy & Induction-Hardened Roller Hardware
Every extension return spring and retaining component is formed from high-tensile alloy spring steel subjected to computer-controlled oil quenching and tempering. This metallurgical process maintains constant elastic pull force and prevents thermal relaxation under continuous operating temperatures exceeding 750°F (400°C). The included anchor pins and cam rollers feature induction-hardened contact surfaces to eliminate roller flat-spotting and maintain smooth power transmission under 20,000 to 25,000 lbs GAWR commercial payload demands.
Severe-Duty Anti-Rust Protection & Single-SKU Wheel Servicing
All steel components receive an industrial electro-plated zinc-dichromate or heavy phosphate finish that creates an impermeable barrier against road salt spray, highway brine, moisture, and calcium chloride de-icers. By packaging all matched springs, pins, retainers, and bushings into a single master SKU, fleet maintenance facilities can service SAF/SK9 180 and SAF/SK9 200 brake shoe assemblies in one operation without mixing aged hardware or stocking fragmented loose parts.
Key Features & Specifications
Direct SAF/SK9 Foundation Fitment: Engineered specifically for North American commercial trailers utilizing SAF/SK9 180 (420 x 180mm) and SAF/SK9 200 (420 x 200mm) foundation brake shoes on 9T–14T axle assemblies.
Fatigue-Resistant Spring Metallurgy: Oil-tempered alloy spring steel ensures rapid, balanced shoe retraction across extended highway duty cycles.
Induction-Hardened Rollers & Pins: Case-hardened steel rollers resist surface grooving and ensure smooth camshaft power transmission.
Severe-Duty Chemical & Salt Protection: Zinc-dichromate coating provides an impenetrable barrier against road brine, salt spray, and winter de-icing chemicals.
Turn-Key Foundation Overhaul Bundle: Master hardware kit bundles heavy-duty return springs, retaining clips, anchor pins, and cam rollers for immediate wheel-end maintenance.
Frequently Asked Questions (FAQ)
Q1: Which brake shoe models are compatible with this SAF SK9 Repair Kit?
A: This kit is engineered specifically for North American commercial drum brake setups utilizing SAF/SK9 180 (420 x 180mm) and SAF/SK9 200 (420 x 200mm) foundation brake shoes across 9T to 14T trailer axles.
Q2: What is the primary difference between SAF/SK9 180 and SAF/SK9 200 hardware requirements?
A: While both utilize standard 420mm diameter SAF drum geometry, the repair hardware is dimensionally configured to provide proper spring tension, roller track clearance, and pin retention across both the 180mm (approx. 7.09") and 200mm (approx. 7.87") shoe widths.
Q3: Why should hardware be replaced during every brake shoe replacement?
A: Operating friction heat permanently degrades spring tension and wears flat spots on rollers. Reusing weakened hardware causes incomplete shoe retraction, continuous brake drag, drum glazing, and uneven lining taper.
Q4: How does the surface coating withstand severe winter highway chemicals?
A: All components receive an industrial zinc-dichromate or phosphate finish that passes strict salt-spray tests, effectively resisting rust from calcium chloride, road salt, and humidity.
Q5: Are private labeling, custom packaging, and palletized bulk shipping supported?
A: Yes. As a direct factory manufacturer, we support custom polybag branding, private-label master cartons, and palletized export packaging for North American parts distributors and fleet suppliers.
