Crafted for Class 7–8 interstate freight tractors, bulk haulers, dry freight vans, and severe-duty vocational trailers across North America, these Brake Linings FMSI 4709 deliver a dependable wheel-end friction overhaul solution. Purpose-built to match standard 16.5" x 7" foundation brake shoes, this low-metallic non-asbestos friction block set provides smooth air-brake deceleration, exceptional high-temperature fade resistance, and uniform drum wear across demanding line-haul routes.
Maintaining predictable stopping distance and fulfilling strict FMVSS-121 performance standards under full payload capacities requires commercial friction materials capable of resisting continuous mechanical and thermal fatigue. Severe highway deceleration and recurring stop-and-go delivery runs generate extreme wheel-end temperatures, where inferior compounds suffer rapid thickness erosion, surface glazing, and aggressive drum grooving.Our Brake Linings FMSI 4709 deliver genuine OE-level dimensional accuracy and heavy-duty structural durability tailored for North American fleet operations.
High-Density Non-Asbestos Friction Compound
Formulated with an advanced low-metallic, non-asbestos matrix, each 4709 friction block undergoes high-pressure hydraulic pressing followed by controlled thermal curing. This robust composition maintains a stable friction coefficient across extreme working temperatures reaching 750°F (400°C), eliminating brake fade during prolonged downhill descents and emergency stopping events.
Precision Hole Pattern & Drum-Friendly Wear Profile

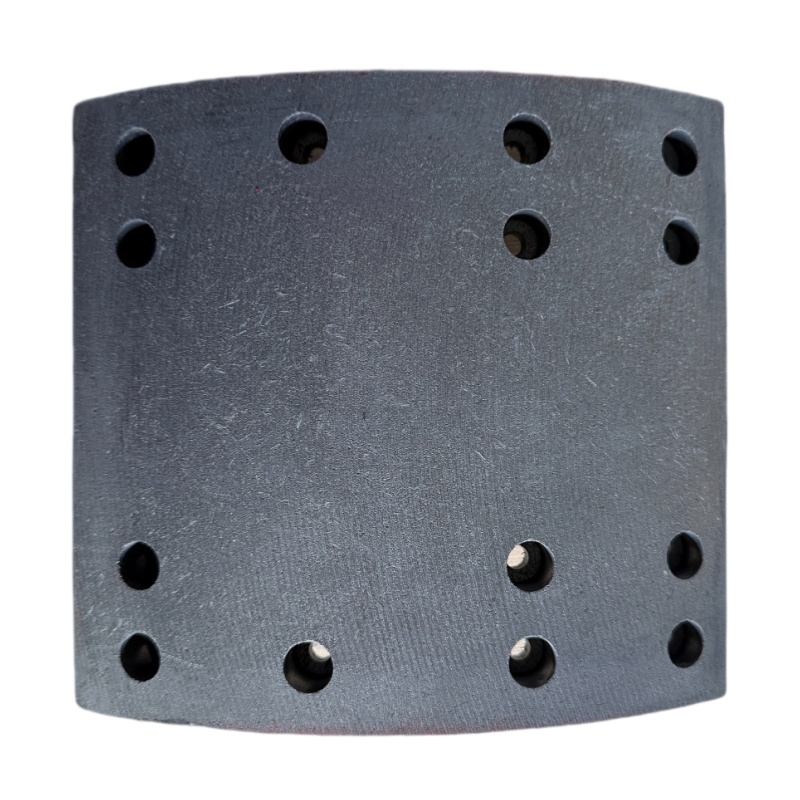

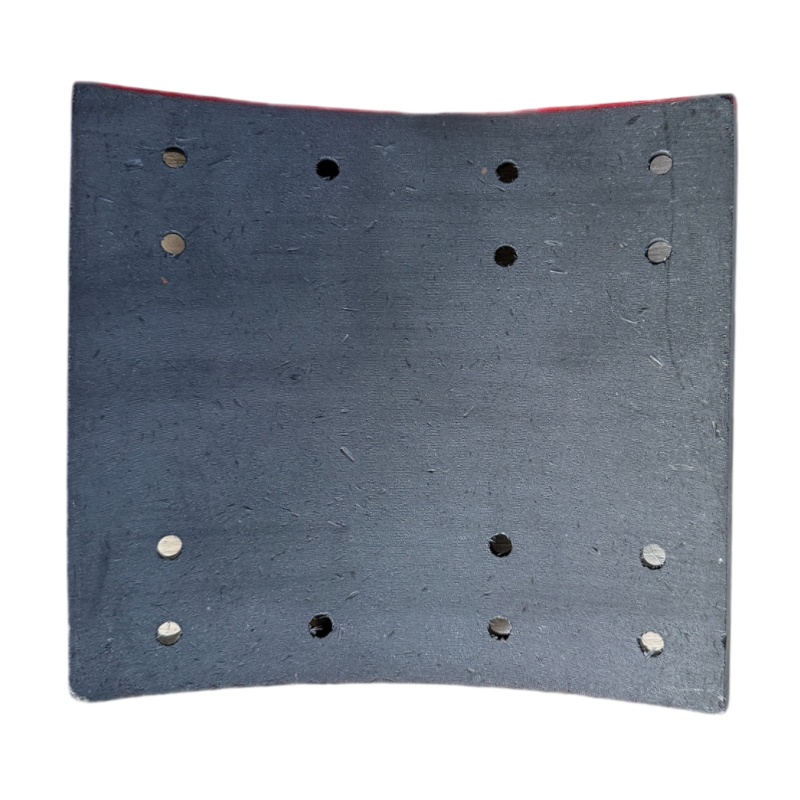

Every lining segment features factory-drilled, chamfered rivet holes that align accurately with standard 16.5-inch commercial brake shoe tables. This ensures maximum mechanical shear resistance and vibration stability under sudden torque spikes. The balanced friction matrix encourages uniform contact across commercial brake drums, significantly mitigating localized hot spots, drum grooving, and edge taper.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for North American standard FMSI 4709 commercial foundation brake shoes on 16.5" x 7" drum brake assemblies.
FMVSS-121 Certified Compound: Commercial-grade non-asbestos friction formulation provides short stopping distances, low dust output, and dependable thermal stability.
High Thermal Fade Resistance: Thermally cured to operate continuously under heavy line-haul cycles with consistent friction levels up to 750°F (400°C).
Precision Rivet Alignment: CNC-machined rivet hole positions guarantee effortless mechanical fastening and maximum shear load integrity on shoe skeletons.
Extended Drum & Lining Life: Smooth, balanced friction matrix minimizes drum micro-grooving, heat cracking, and uneven shoe taper wear.
Frequently Asked Questions (FAQ)
Q1: Which vehicle types and axle configurations are compatible with these Brake Linings FMSI 4709?
A: These friction blocks are engineered for North American Class 7 and Class 8 commercial vehicles equipped with standard 16.5" x 7" foundation drum brakes across drive and trailer axles.
Q2: What friction material formulation is used in these Brake Linings FMSI 4709?
A: They utilize a heavy-duty, low-metallic non-asbestos organic (semi-metallic) compound engineered for 20,000 to 23,000 lbs GAWR commercial fleet operations.
Q3: Are rivet holes pre-drilled in the lining blocks?
A: Yes. All 4709 lining segments come precision-drilled and counterbored to match OEM rivet hole patterns for immediate fastening onto bare steel shoe cores.
Q4: How do these linings perform under sustained downhill braking and high-temperature conditions?
A: The friction material undergoes a specialized thermal post-curing process to prevent glazing and brake fade, ensuring rapid heat dissipation and reliable torque recovery under heavy braking cycles.
Q5: Can you provide customized packaging, edge-code stamping, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we provide custom part-number edge printing, private-brand packaging boxes, and export-grade pallet packaging for North American parts distributors and fleet suppliers.
