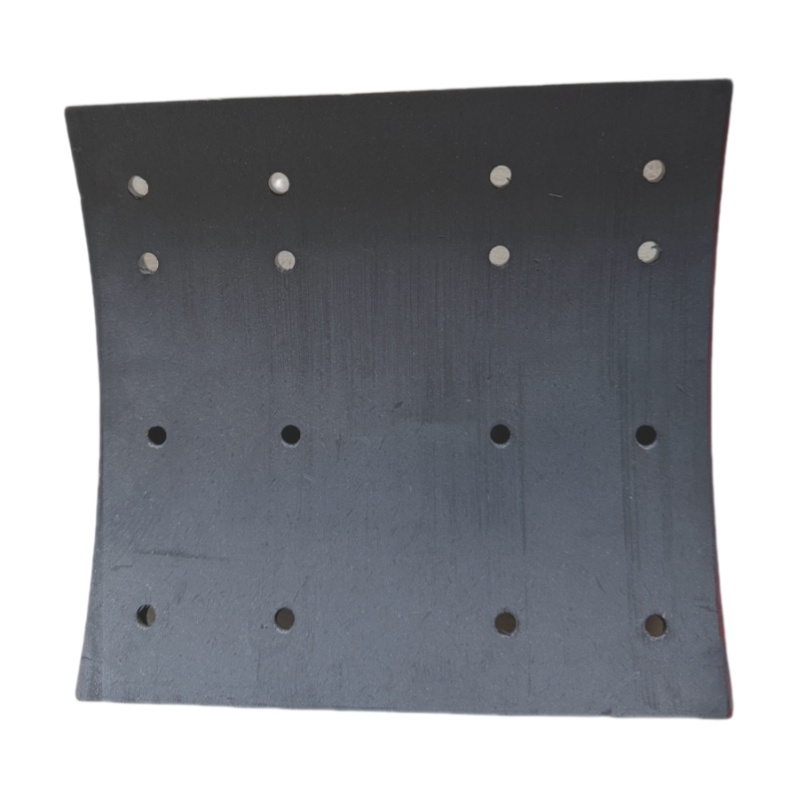

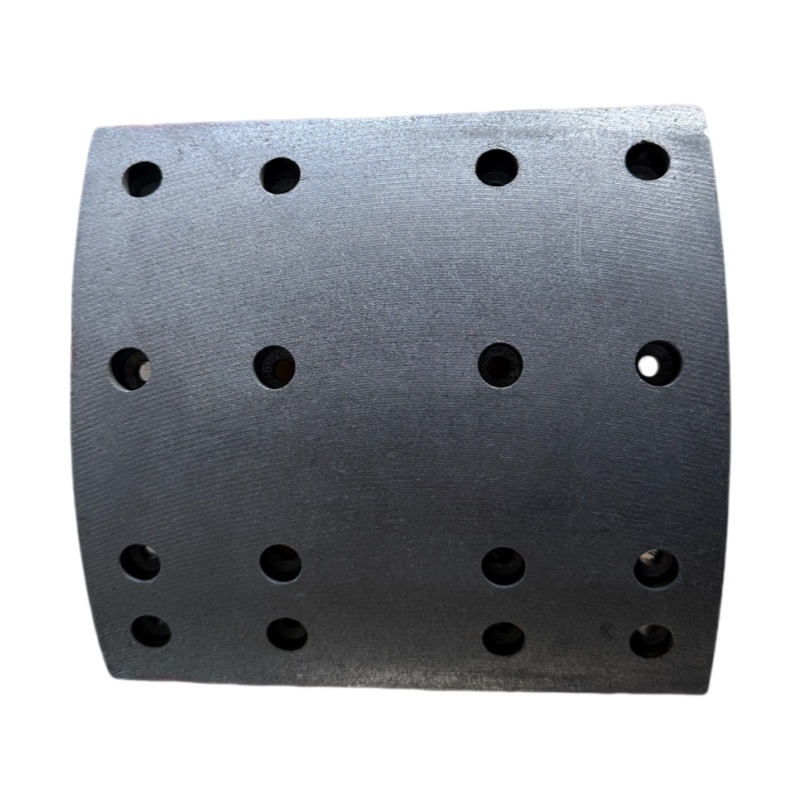

Crafted for Class 7–8 interstate freight tractors, straight vocational trucks, refuse haulers, and commercial front-steer or auxiliary lift axles across North America, these Brake Linings FMSI 4644 deliver a premium foundation reline solution. Tailored specifically for 15" x 4" steer-axle foundation brake shoes, this low-metallic non-asbestos friction block set provides responsive pneumatic braking torque, outstanding thermal fade resistance, and balanced drum wear under demanding highway conditions.
Maintaining steering control, balanced directional braking torque, and strict FMVSS-121 compliance under heavy front axle loading requires commercial-grade friction materials capable of resisting continuous mechanical and thermal fatigue. Frequent urban stop-and-go routes, heavy steer-axle weight distribution, and steep gradient braking generate high wheel-end temperatures, where substandard blocks suffer friction glazing, premature thickness decay, and aggressive drum grooving.Our Brake Linings FMSI 4644 deliver genuine OEM-level dimensional accuracy and heavy-duty structural reliability tailored for North American fleet operations.
High-Density Non-Asbestos Steer Formulation
Formulated with an advanced low-metallic, non-asbestos matrix, each 4644 friction block undergoes high-pressure hydraulic molding and controlled thermal post-curing. This robust compound maintains a stable, uniform friction coefficient across severe operating temperatures up to 750°F (400°C), preventing high-temperature brake fade and ensuring immediate pedal modulation during critical steer deceleration.
Precision Hole Pattern & Drum-Friendly Wear Profile
Every lining block is manufactured with factory-drilled, chamfered rivet holes that align accurately with standard 15-inch steer brake shoe steel cores. This ensures maximum mechanical shear resistance and vibration stability under severe directional torque spikes. The smooth friction matrix encourages uniform contact across standard 15-inch commercial brake drums, significantly mitigating localized hot-spotting, drum scoring, and premature edge taper.
Key Features & Specifications
Target Foundation Fitment: Purpose-built for North American standard FMSI 4644 commercial brake shoe tables on 15" x 4" steer and auxiliary axle drum assemblies.
FMVSS-121 Certified Compound: Commercial-grade non-asbestos friction formulation provides short stopping distances, low dust output, and dependable thermal stability.
Superior Fade Resistance: Thermally cured to operate continuously under heavy line-haul cycles with consistent friction levels up to 750°F (400°C).
Precision Rivet Alignment: CNC-machined rivet hole positions guarantee effortless mechanical fastening and maximum shear load integrity on shoe skeletons.
Extended Drum & Lining Life: Smooth, balanced friction matrix minimizes drum micro-grooving, heat cracking, and uneven shoe taper wear.
Frequently Asked Questions (FAQ)
Q1: Which vehicle types and axle setups are compatible with these Brake Linings FMSI 4644?
A: These friction blocks are engineered for North American Class 7 and Class 8 commercial vehicles equipped with standard 15" x 4" foundation drum brakes, primarily designated for front steer and auxiliary lift axle positions.
Q2: What friction material formulation is used in these Brake Linings FMSI 4644?
A: They utilize a heavy-duty, low-metallic non-asbestos organic (semi-metallic) compound engineered for 12,000 to 14,600+ lbs GAWR steer axle commercial fleet operations.
Q3: Are rivet holes pre-drilled in the lining blocks?
A: Yes. All 4644 lining segments come precision-drilled and counterbored to match standard OEM rivet patterns for immediate mechanical fastening onto bare steel shoe cores.
Q4: How do these linings perform under sustained downhill braking and high-temperature conditions?
A: The friction material undergoes a specialized thermal post-curing process to prevent glazing and brake fade, ensuring rapid heat dissipation and reliable torque recovery under heavy braking cycles.
Q5: Can you provide customized packaging, edge-code stamping, and palletized bulk shipping?
A: Yes. As a direct manufacturing source, we provide custom part-number edge printing, private-brand packaging boxes, and export-grade pallet packaging for North American parts distributors and fleet suppliers.
